Multifunctional Crushing/Milling/Sifting machine （S-LAB）
Switching Between Crushing, Milling, and Sieving functions by component replacement.
Classification:
Email:
Multifunctional Crushing/Milling/Sifting machine （S-LAB）
- Low heat generation
- High efficiency
- Modular Design
- Small screen aperture with high precision
- Easy to assemble and disassemble
- Four types of granulating screens (round,square,fish scale,and special-shaped holes)
- Independently designed right-angle transmission system and shaft sealing technology
Application
Granulation can be performed according to the desired particle size, making it an ideal equipment for processing low-viscosity agglomerates,gum-like materials,and wet substances.
main components

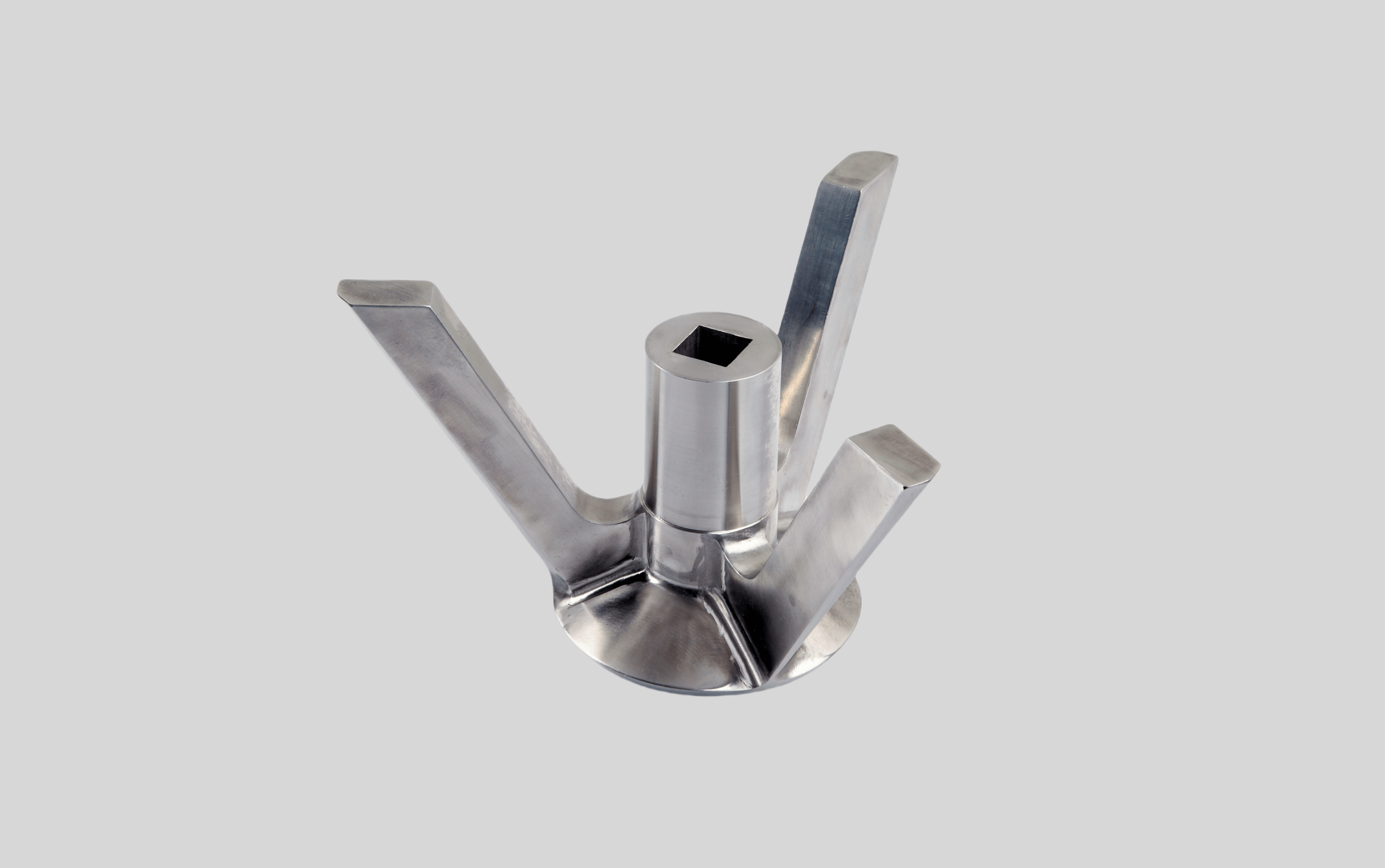

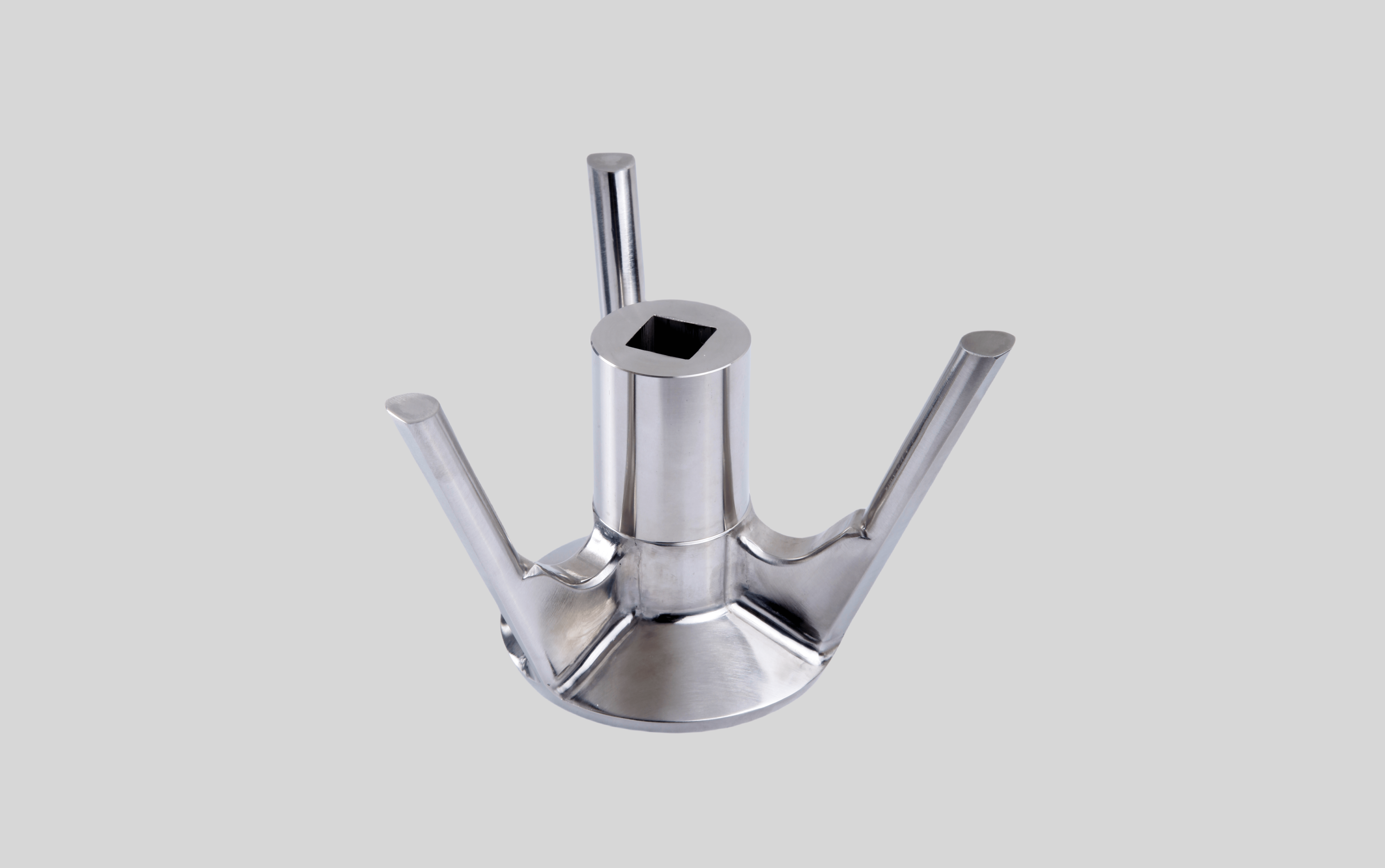

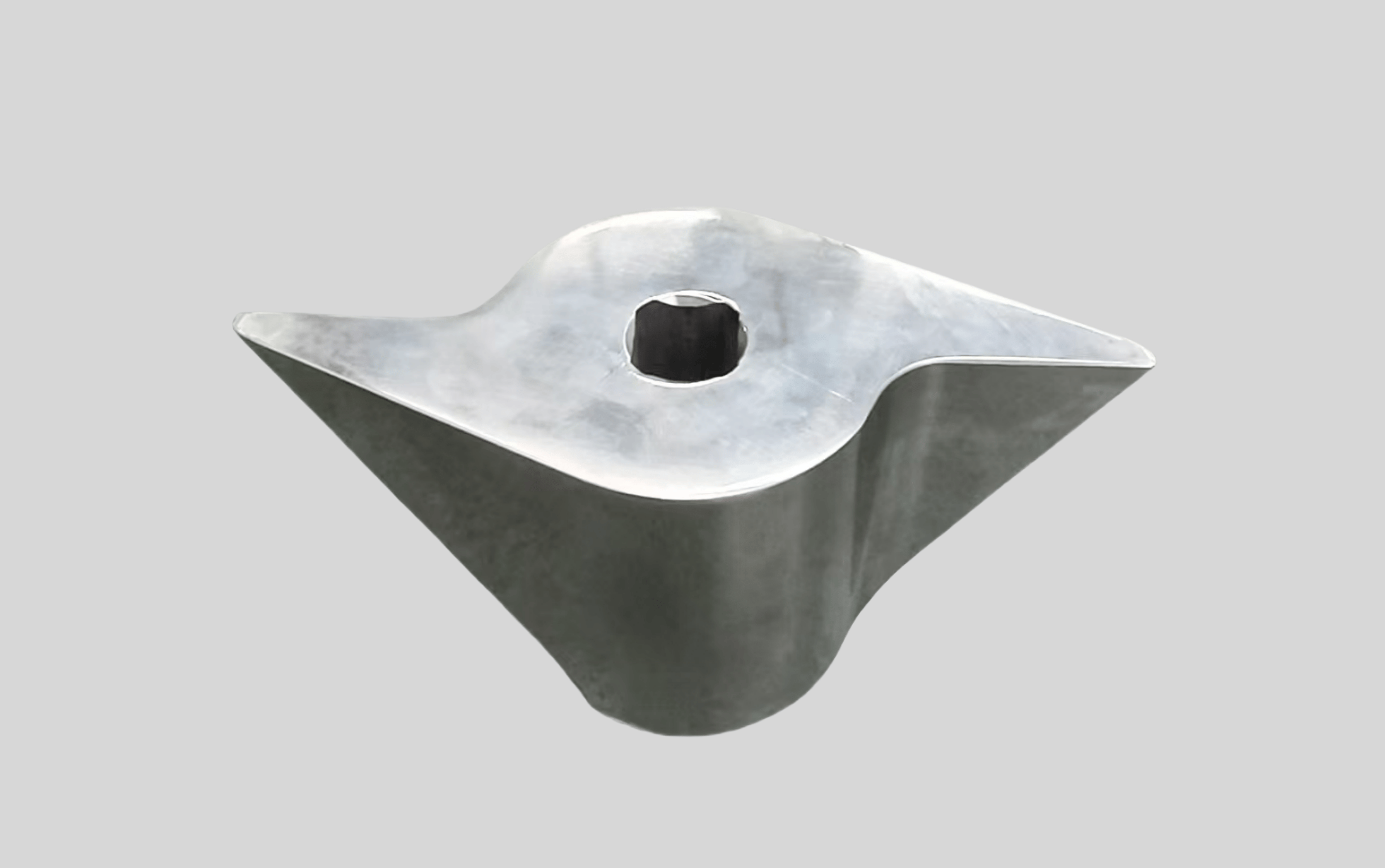

blade
square blade
round blade
tooth blade
bagua blade

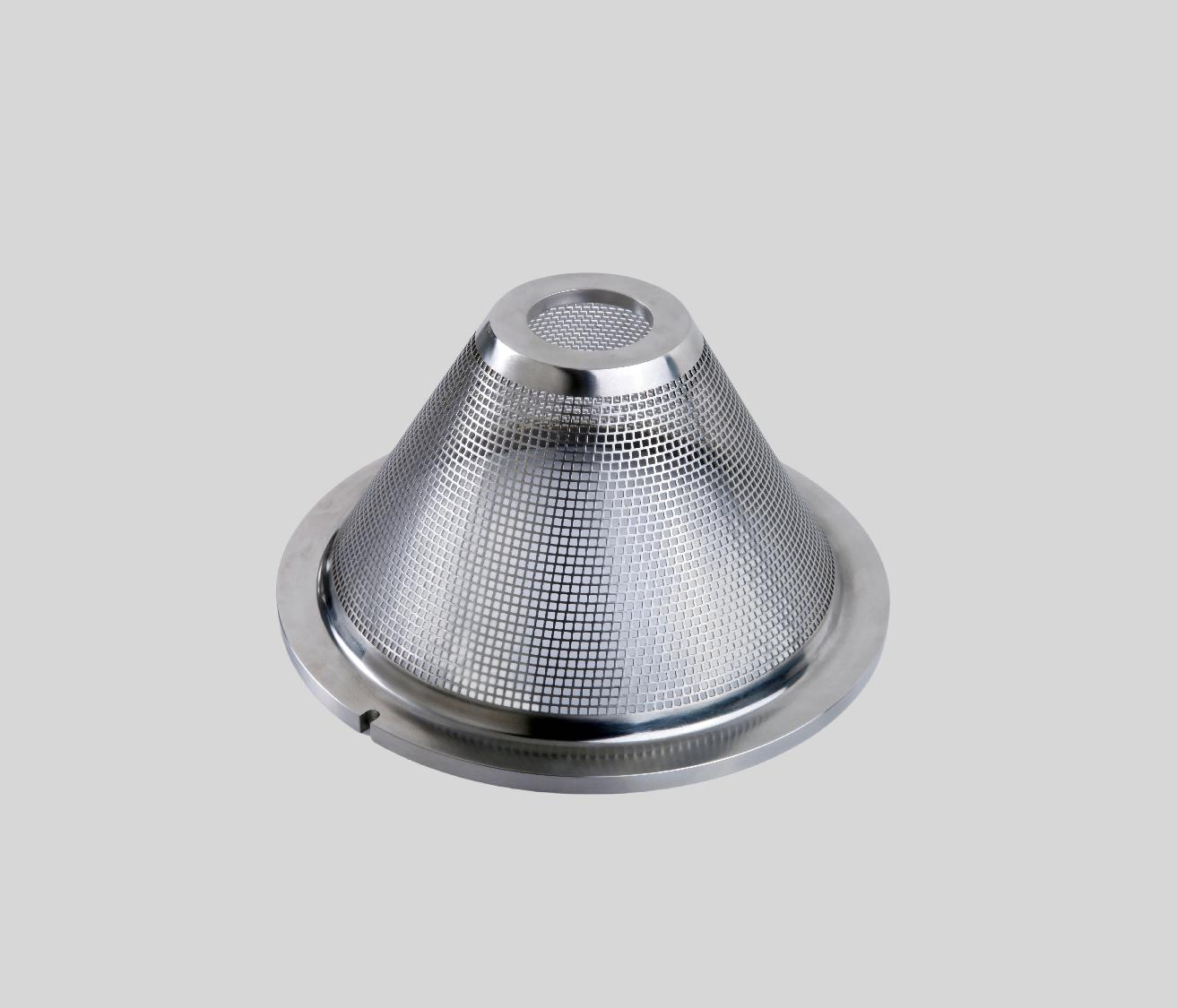

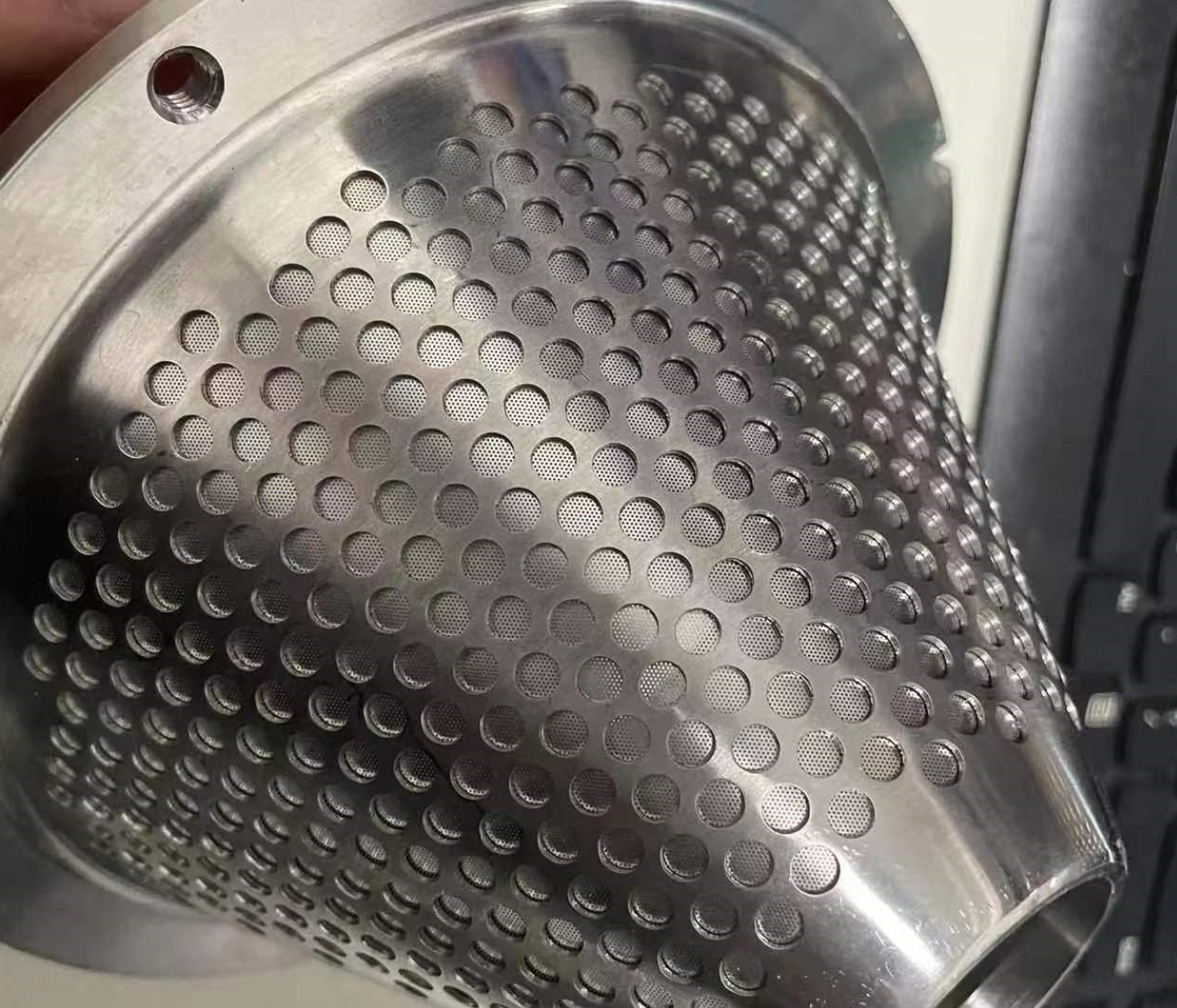

square hole

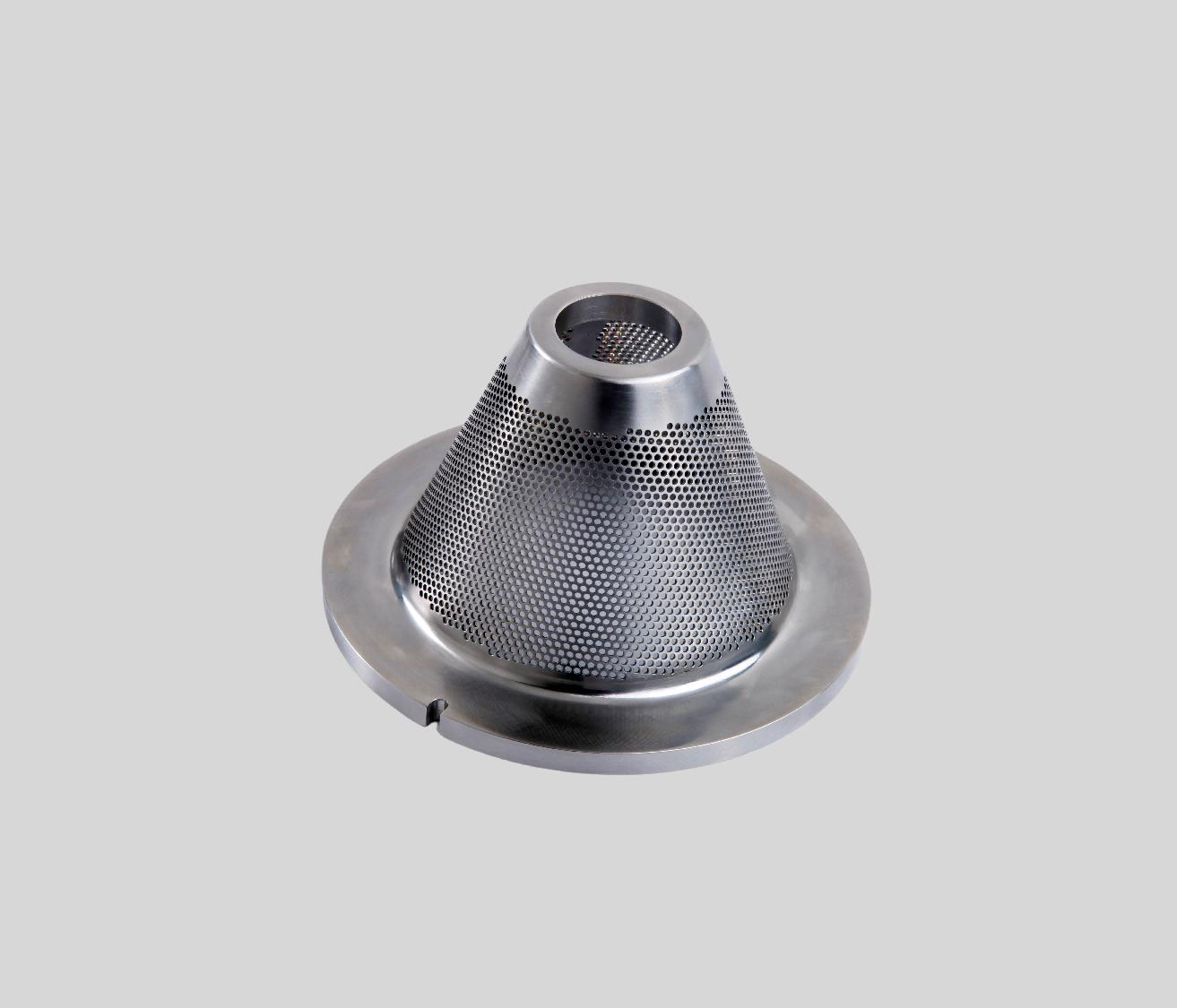

round hole

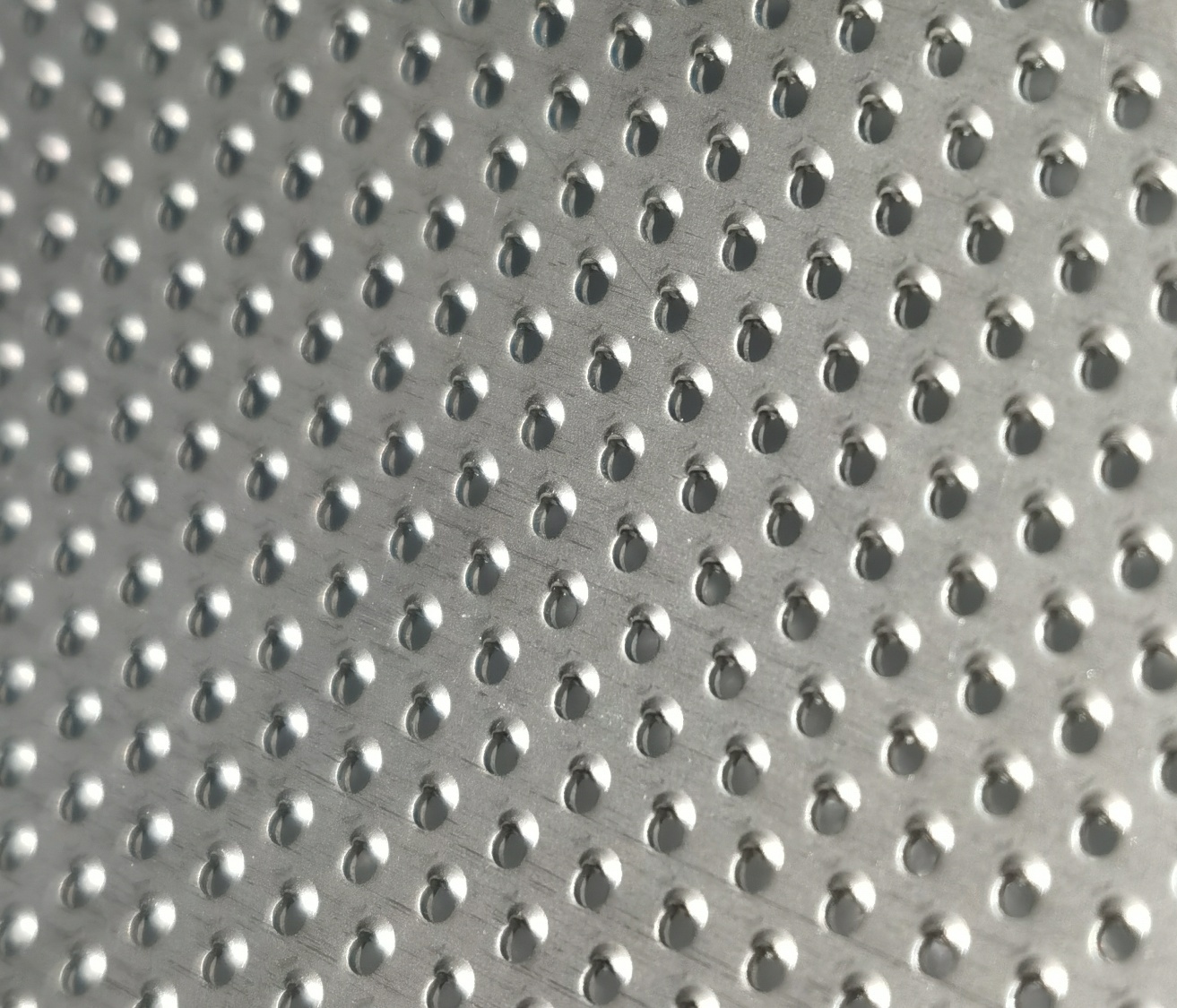

Friction hole
Double-layer

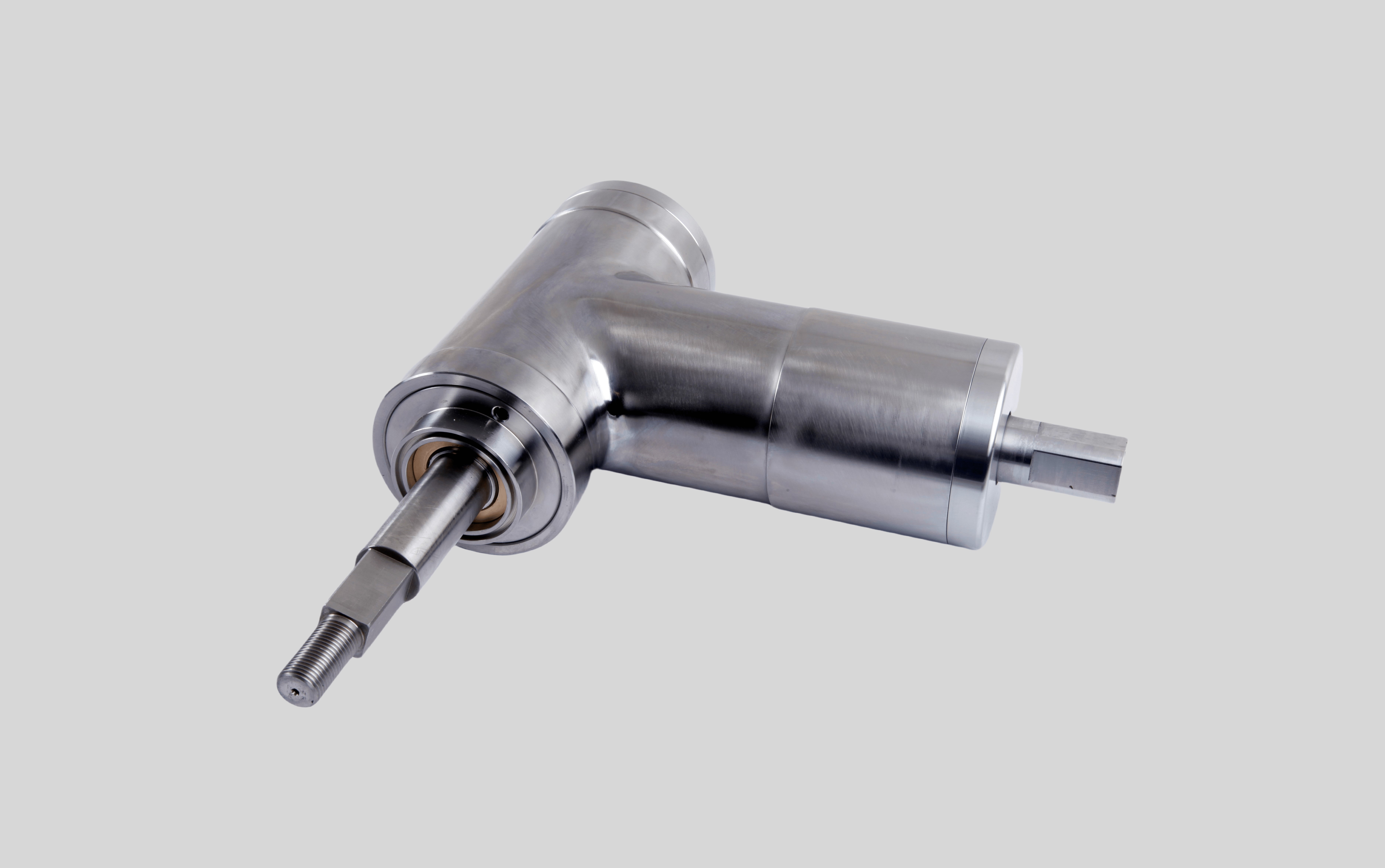

Transmission system

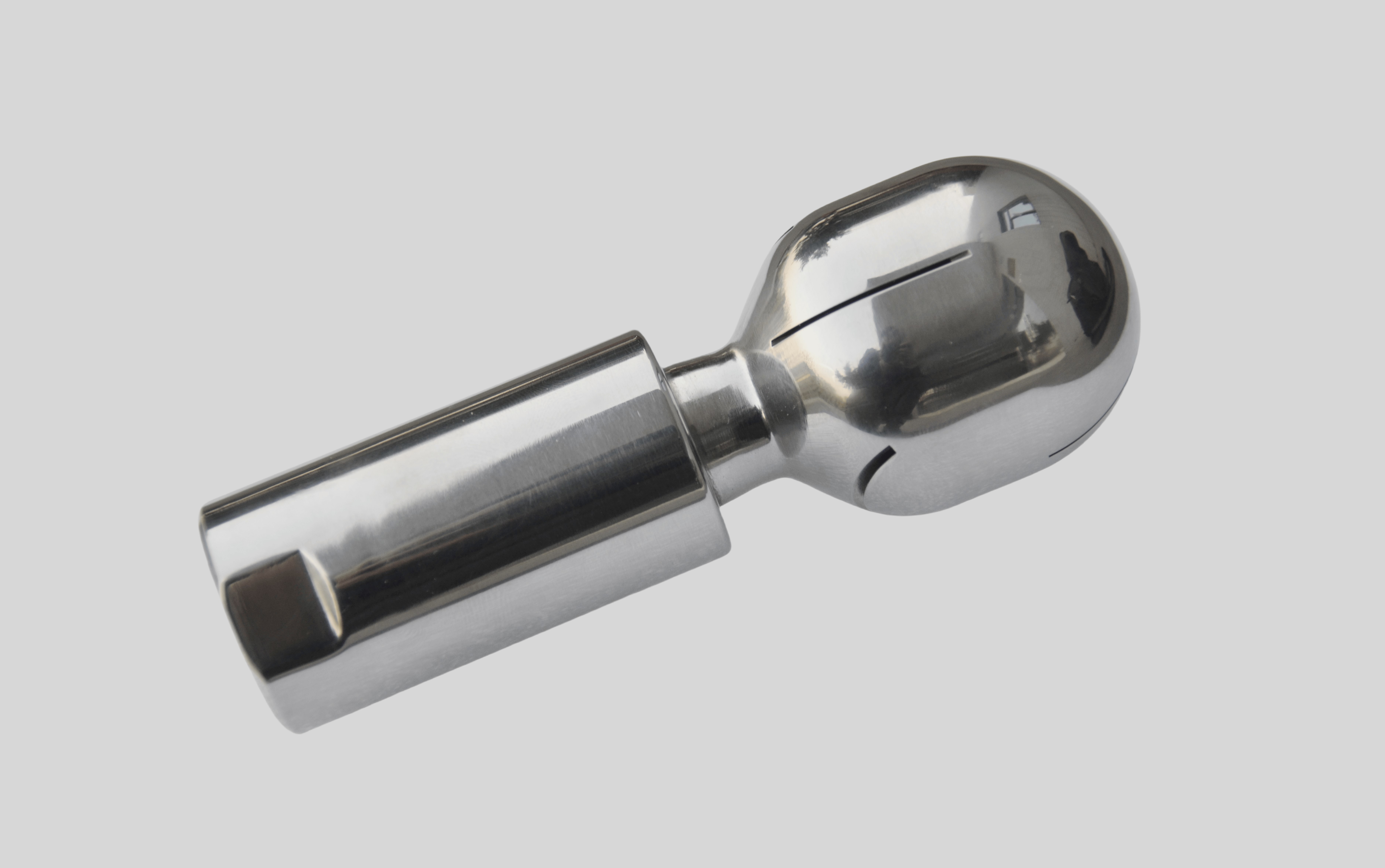

cleaning ball

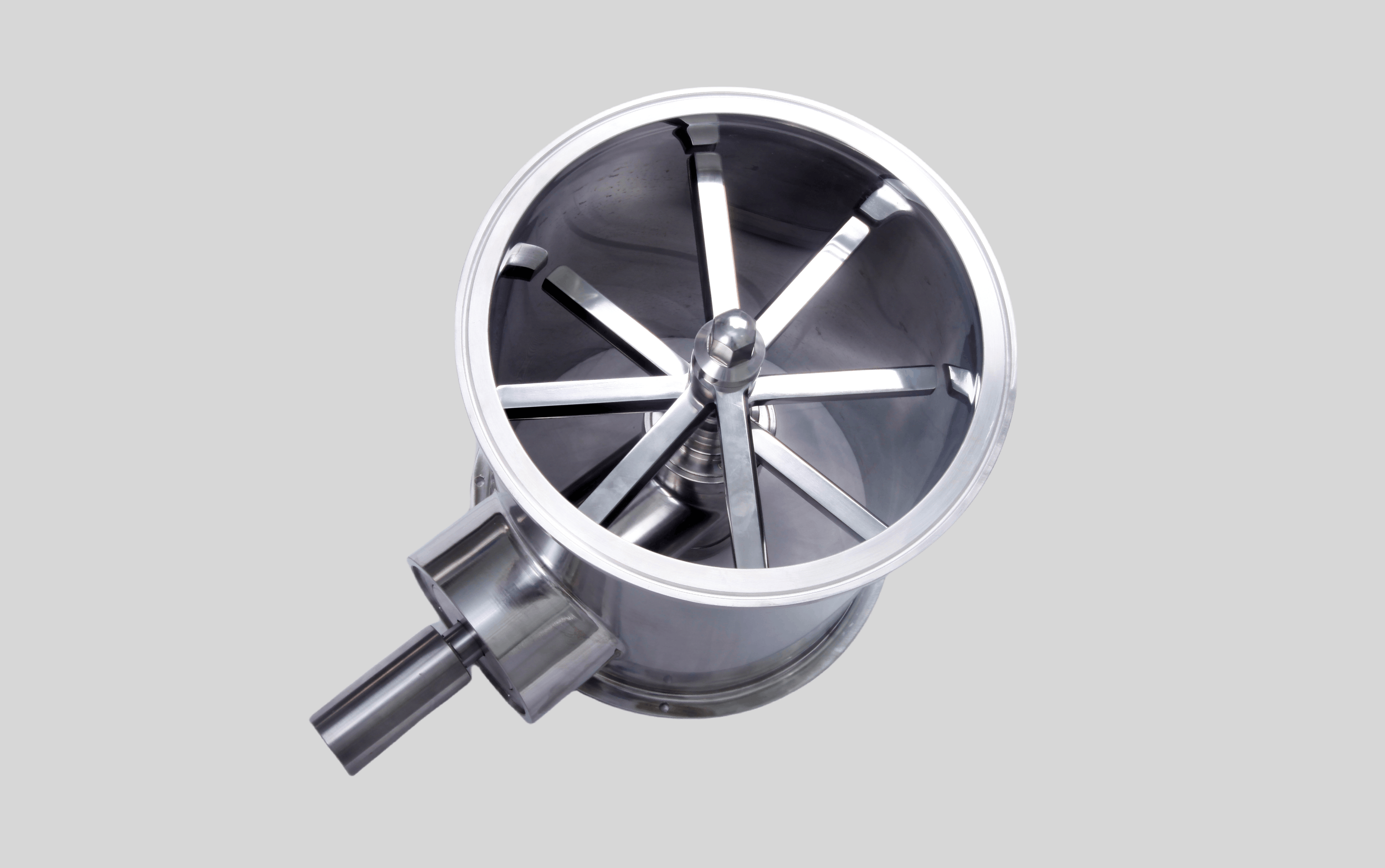

Dispersing blade

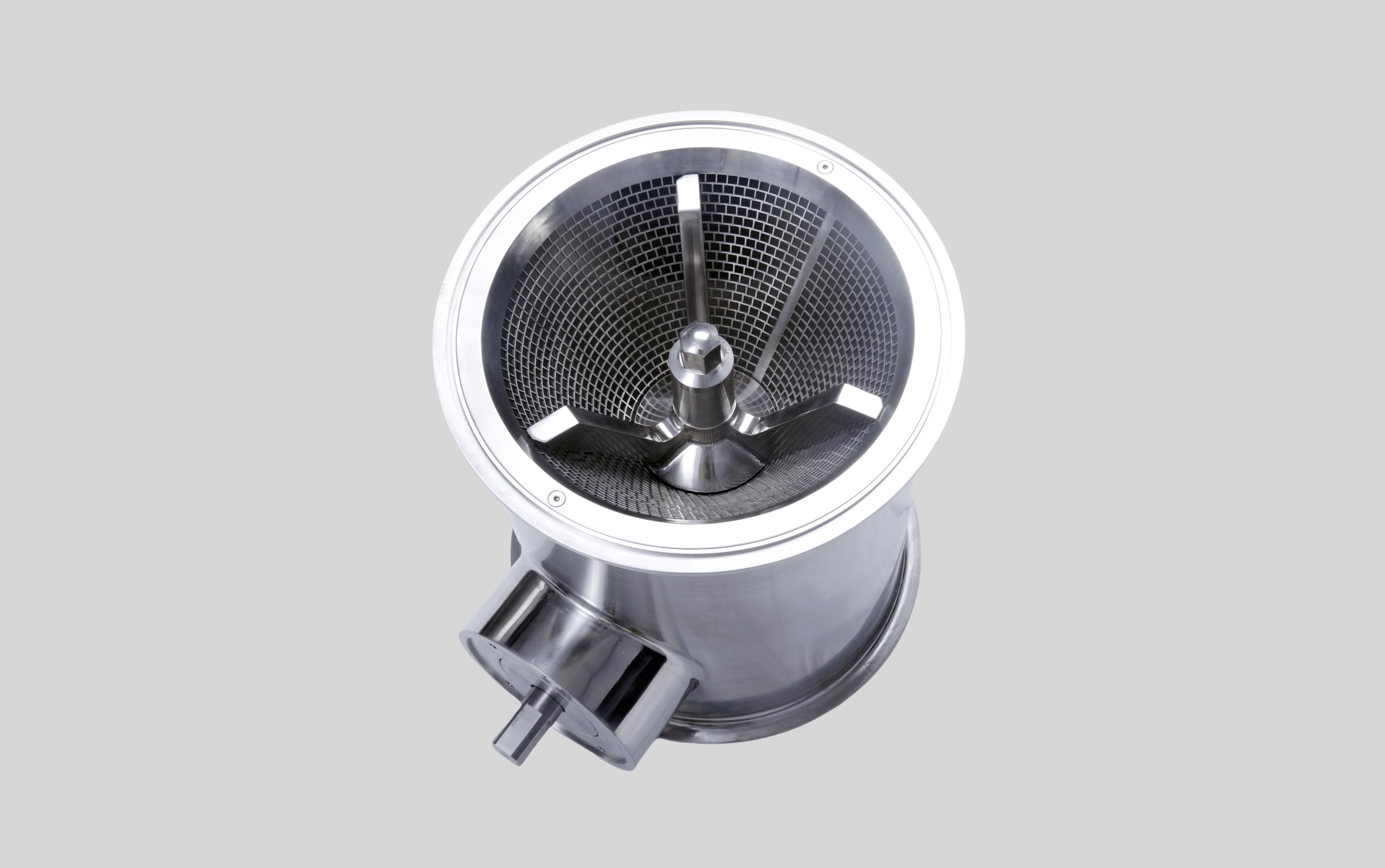

head
certificate
The first and only one in China to obtain the explosion-proof certificate for the entire machine（Explosion proof optional）.
CE
explosion-proof
explosion-proof
explosion-proof
| Item | Unit | model | ||||||
| ZLJ-100 | ZLJ-125-Y | ZLJ-150-Y | ZLJ-208-Y | ZLJ-250-Y | ZLJ-270-Y | ZLJ-300-Y | ||
| Capacity | kg/h | ≤50 | ≤250 | ≤500 | ≤1500 | ≤2500 | ≤3000 | ≤6000 |
| Power of motor | kw | 0.75 | 2 | 3 | 5.5 | 5.5 | 5.5 | 5.5 |
| particle size | μm | 150~10000 | ||||||
| Maximum speed | r/min | 3000 | 2000 | 1450 | 1000 | 960 | 960 | 960 |
| Installed capacity | kw | 1 | 2.2 | 3.2 | 5.7 | 5.7 | 5.7 | 5.7 |
| Dimension | mm | 700*350*700 | 1050*450*1500 | 1050*450*1500 | 1500*700*1750 | 1550*700*1800 | 1550*700*1950 | 1850*750*1950 |
| power | V/Hz | 220/50 | 380/50 | |||||
| blade | N/A | round / square / tooth / bagua | ||||||
| Optional item | N/A | The equipment is explosion-proof | ||||||
| Centrifugation screening function | ||||||||
| Electric lift | ||||||||
| Vacuum feed function | ||||||||
| Screen mesh （Round） | mm | Φ0.4--Φ10.0 | ||||||
| Screen mesh （Square） | 2*2--20*20 | |||||||
| Screen mesh （friction） | Φ0.8--Φ3.0 | |||||||
| Screen mesh （Customized） | customize according to the diagram | |||||||
Prev
cone mill（ ZLJ-270-Y）
More products
Pulverization of active pharmaceutical ingredients(APIs),including hard,crystalline,and fibrous materials,as well as materials requiring very fine particle size.
By utilizing the high-speed relative motion between the rotor and the screen, agglomerated materials are rapidly granulated under the rotor’s compression, passing through the screen holes, with the finished granules discharged instantly.
By utilizing the high-speed relative motion between the rotor and the screen, agglomerated materials are rapidly granulated under the rotor’s compression, passing through the screen holes, with the finished granules discharged instantly.
Chongqing Liweikang's self-designed whole grain machine's right-angle transmission system and shaft sealing technology greatly reduces the risk of material contamination.
