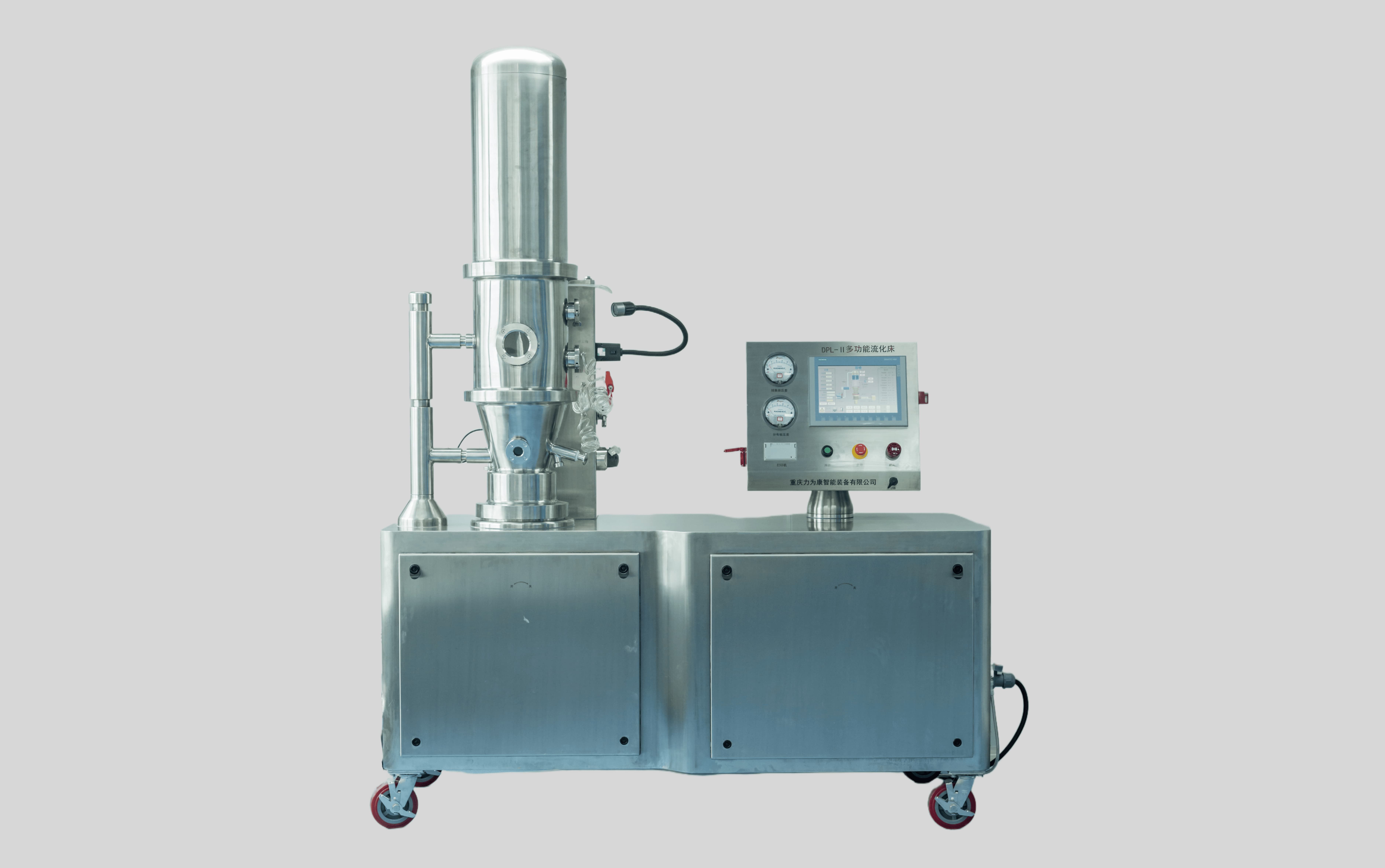

fluid bed
Utilizes vacuum fluidized bed technology and spray drying technology to achieve thermal and mass transfer, enabling multifunctional granulation, coating, and pelletizing of materials.
Classification:
Email:
fluid bed
- High efficiency
- Automation
- Independently designed spray gun
- Integrates mixing, granulation, coating, micro-pelletizing, and drying functions into a single system
- PLC-based program control
- Highly polished
- Excellent airtightness
- Cyclone bottom spray and powder coating function
Application
Powder materials can be processed straight into granules and pellets, and can undergo functional coating operations such as moisture-proofing, taste-masking, and sustained release.
main components
VD3 powder coating
Starch powder coating

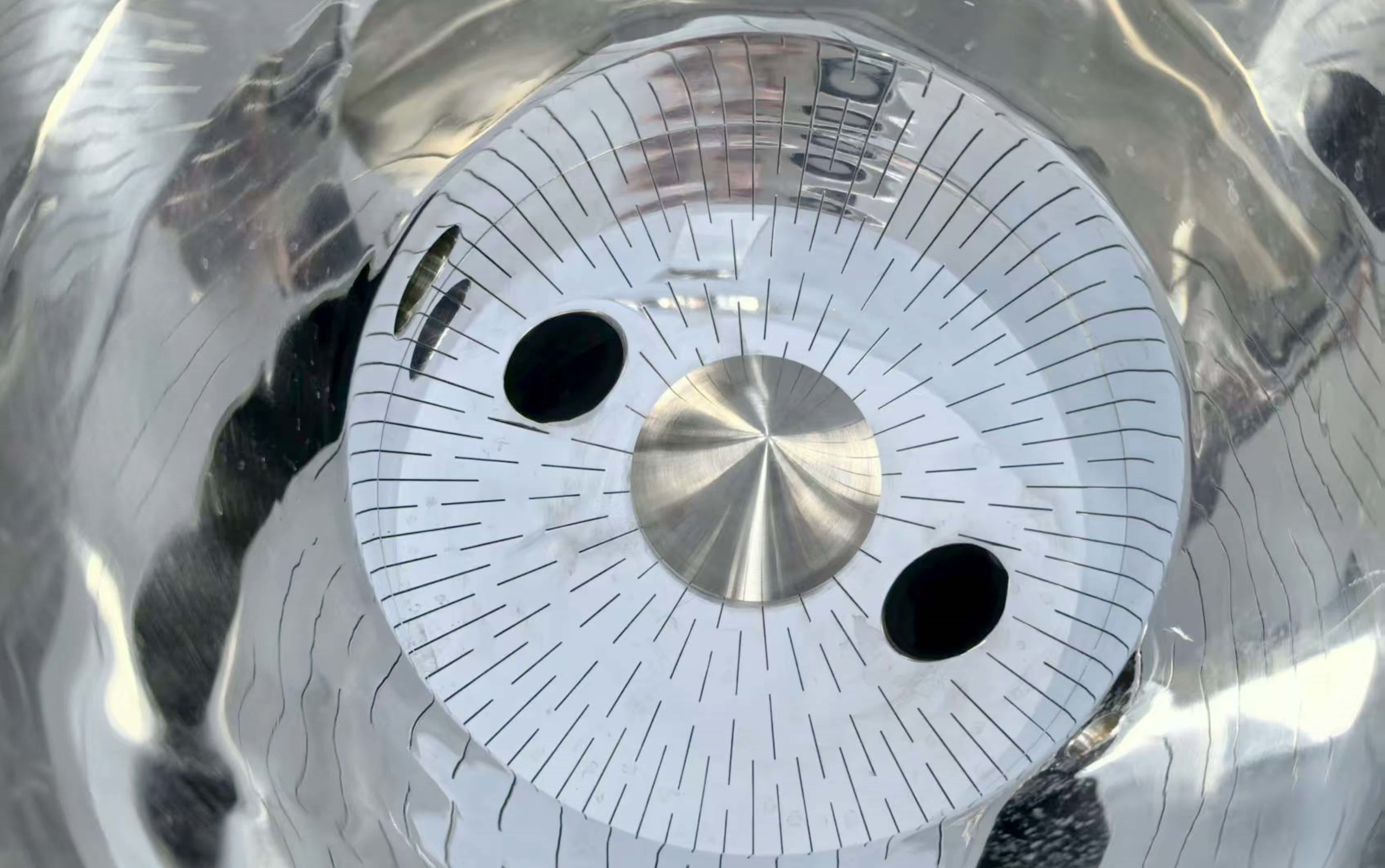

Swirl bottom spray
Swirl bottom spray

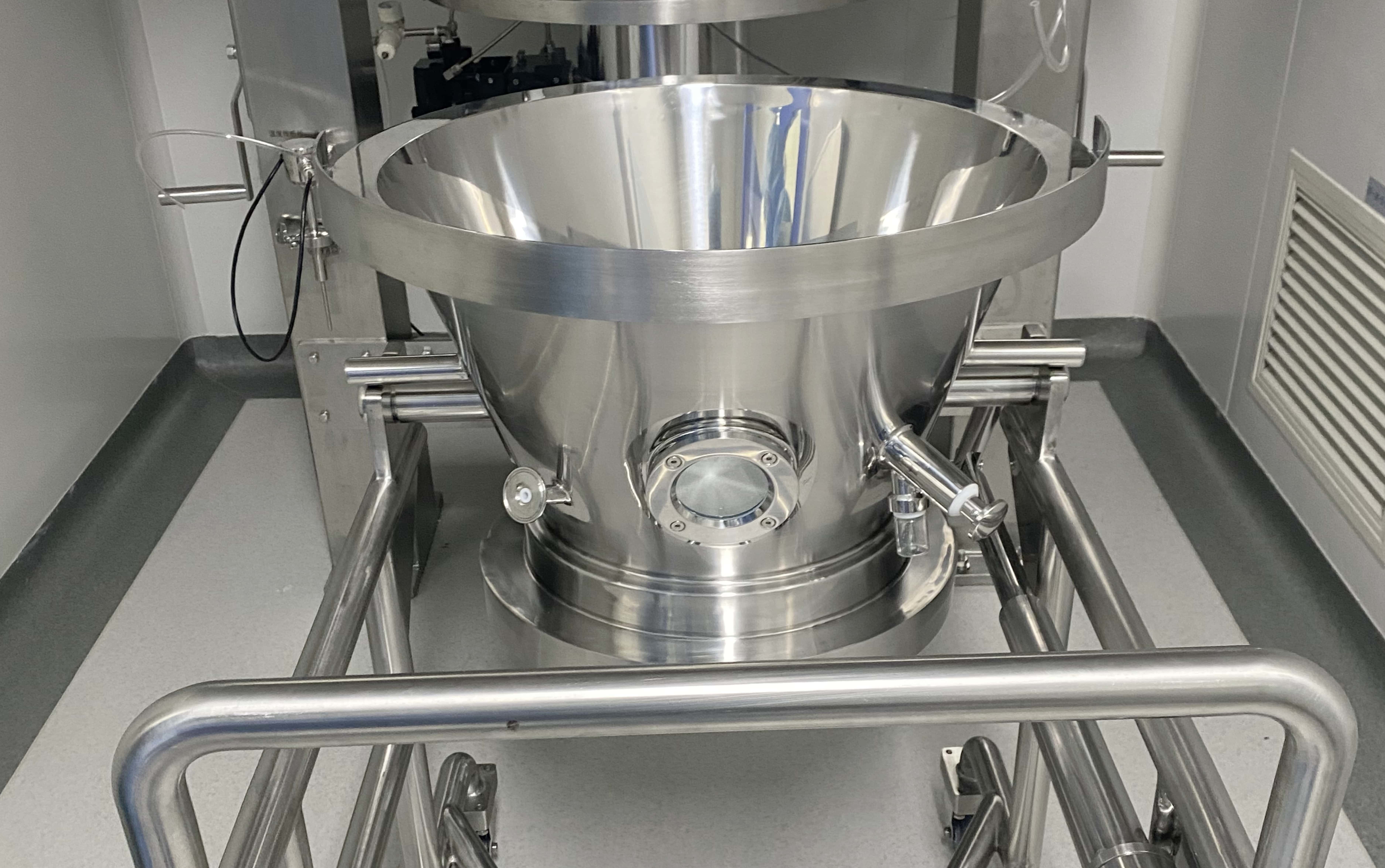

Container

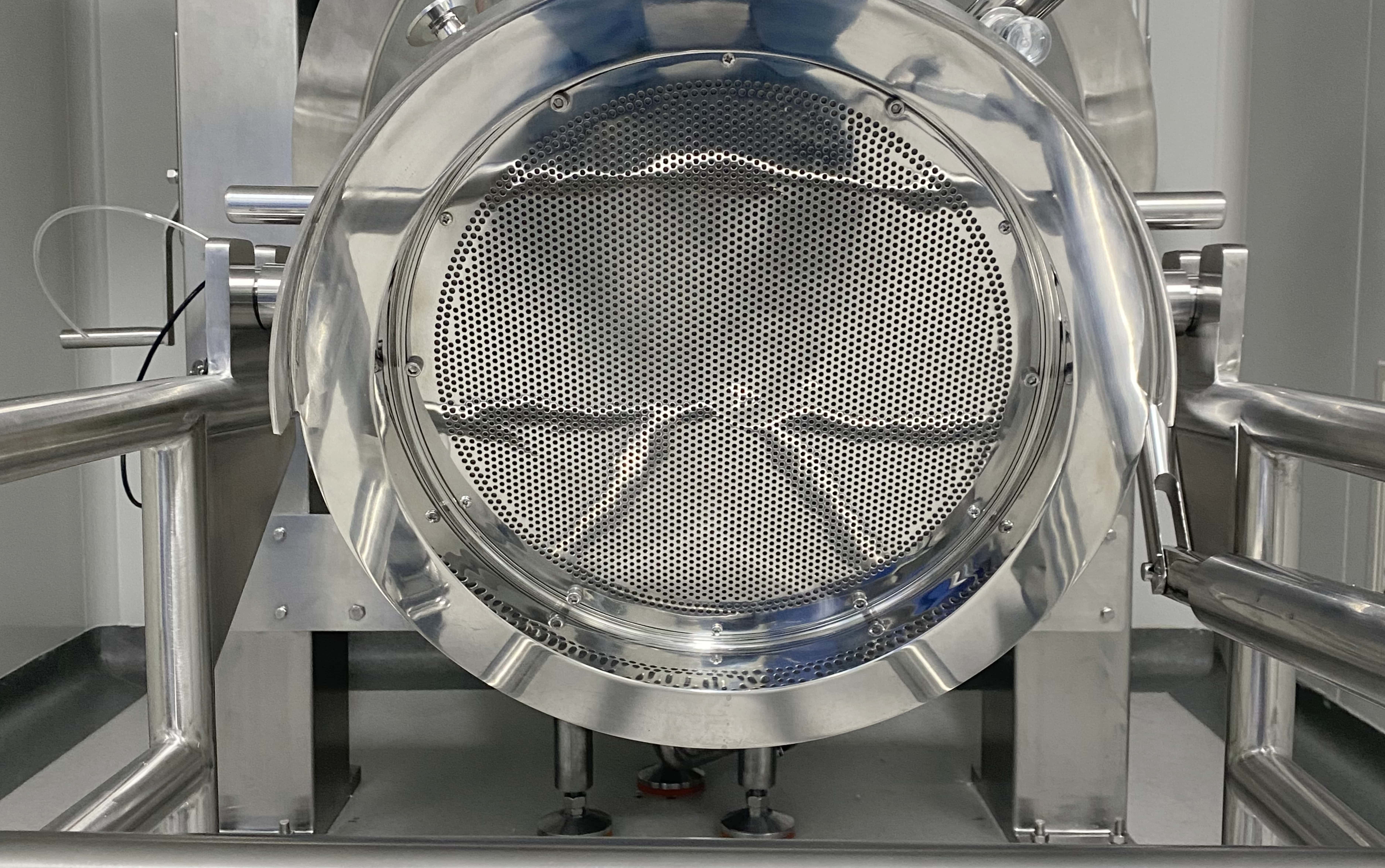

Inlet distribution board

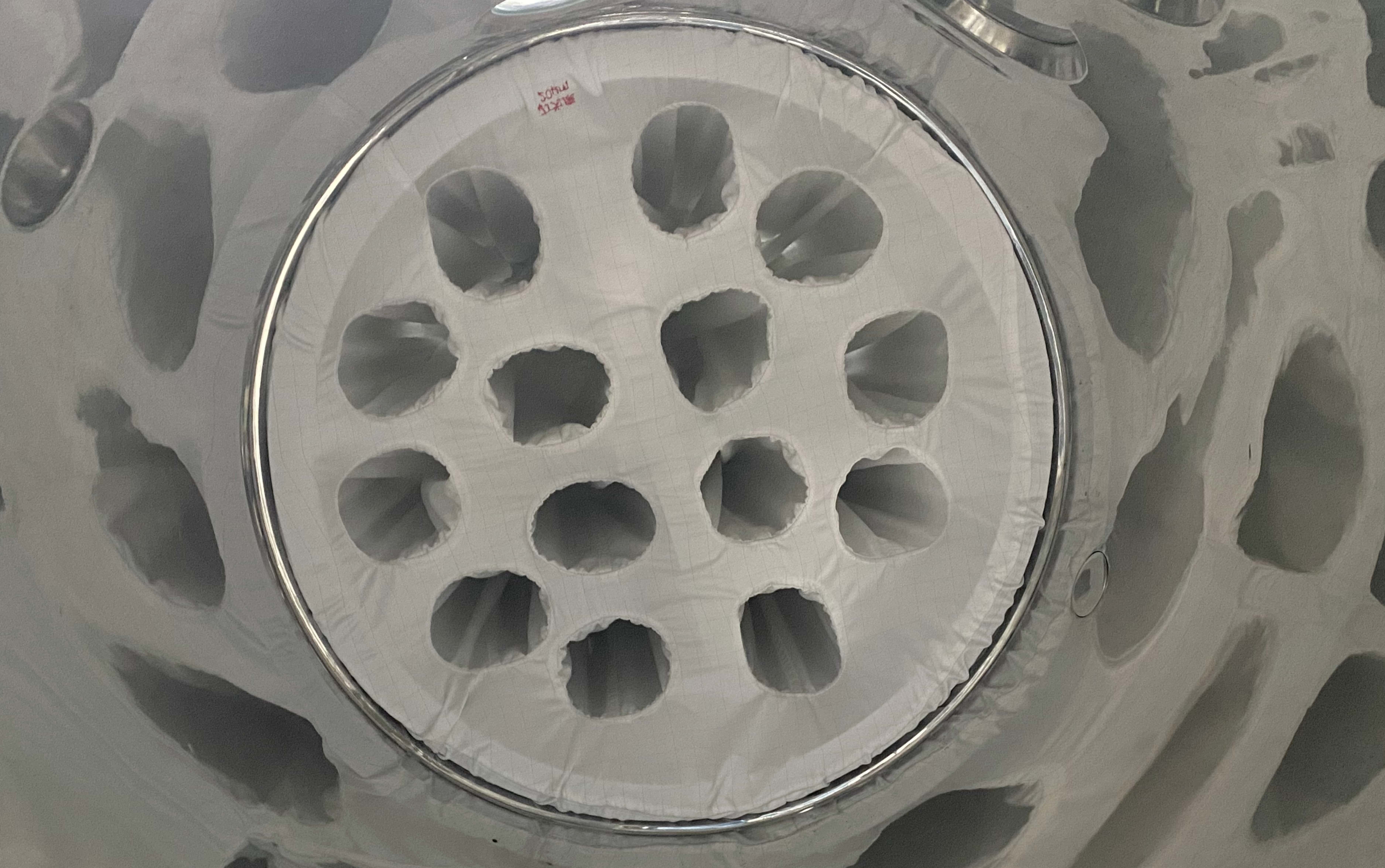

Anti static cloth bag

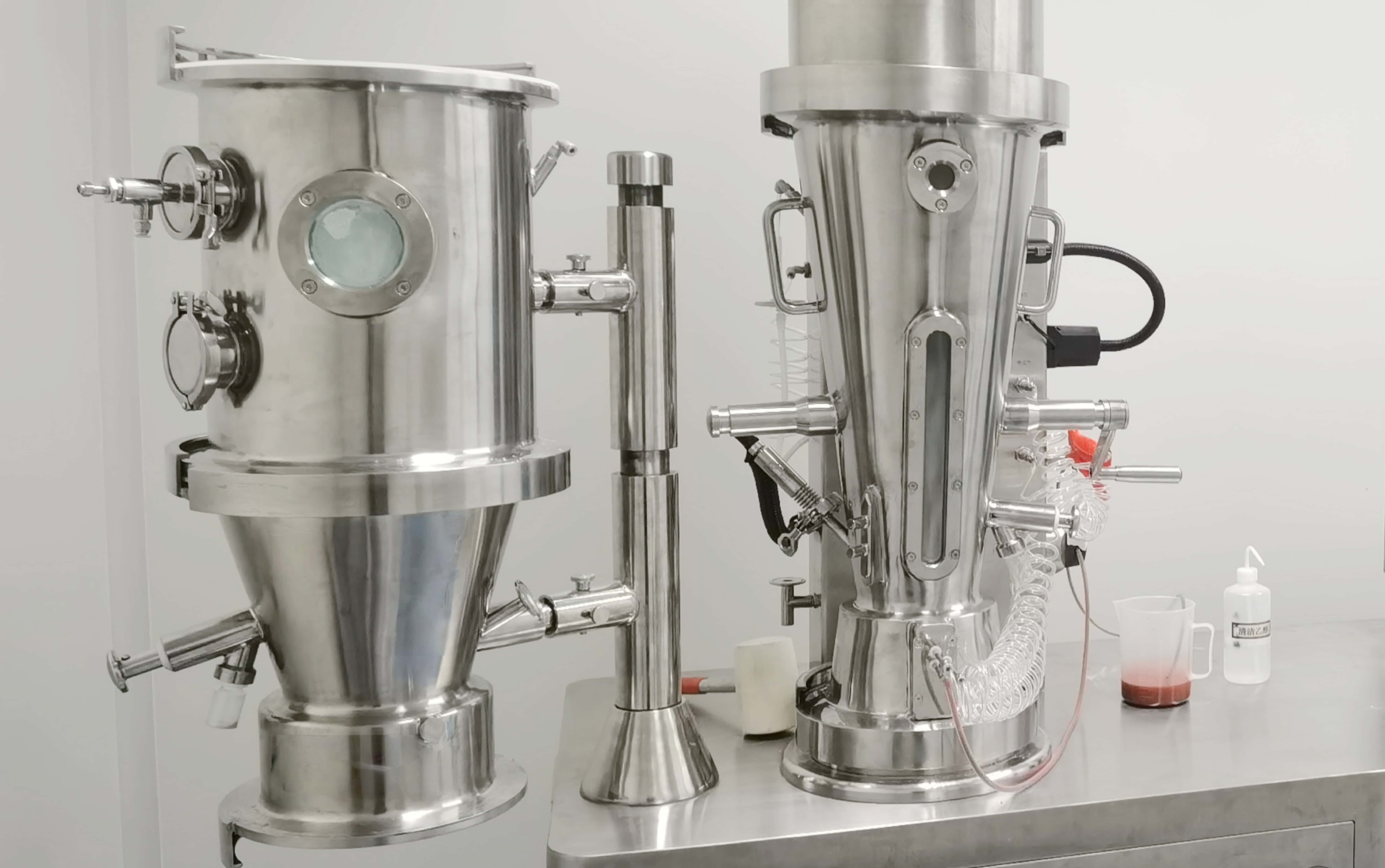

modular design
Key point：Powder coating function
Working principle: The coating solution (including film-forming materials, plasticizers, coloring agents, etc.) is atomized and sprayed onto powder particles in a fluidized state (vigorous movement) through a spray gun. At the same time, hot air is introduced to rapidly evaporate the solvent, thereby forming a thin and uniform film of coating material on the surface of each particle.
Process application：
- taste-masking
- Realize drug sustained release, controlled release or enteric coated release
- Isolate incompatible components
- Improve powder flowability
- Reduce dust
model | Capacity （kg/batch） | Available capacity | Power (KW) | Temperature( ℃） | Optional | ||
Motor | Fan | Calorifier | |||||
MINI0.2 | top spray:0.05--0.25 Wurster bottom spray:0.03--0.2 | top spray：0.75 bottom spray：0.3 | 0.1 | 0.4 | 2 | room temperature--120 | Boiling drying + top spray granulation + Worcester column bottom spray + cyclone bottom spray + powder coating |
DPL-II | top spray:0.3--5 Wurster bottom spary：0.8--4 Side spray：:0.8--1.5 | top spray：3.5 bottom spray：2 | 0.1&0.75 | 4 | 4.5 | room temperature--120 | |
DPL-20 | top spray:5--20 Wurster bottom spary：5-20 Side spray：0.5--10 | top spray：65 bottom spray：38 | 0.1 | 7.5 | 46 | room temperature--120 | |
DPL-60 | top spray:25--80 Wurster bottom spary：25-60 Side spray：5-25 | top spray：290 bottom spray：162 | 0.4 | 13.5 | 110 | room temperature--120 | |
DPL-120 | top spray:45--145 Wurster bottom spary： | top spray：545 bottom spray：384 | 0.4 | 18.5 | 166 | room temperature--120 | |
DPL-200 | top spray: 75--200 Wurster bottom spary：100--200 Side spray：25--60 | top spray：800 bottom spray：470 Side spray：250 | 0.4 | 30 | 221 | room temperature--120 | |
