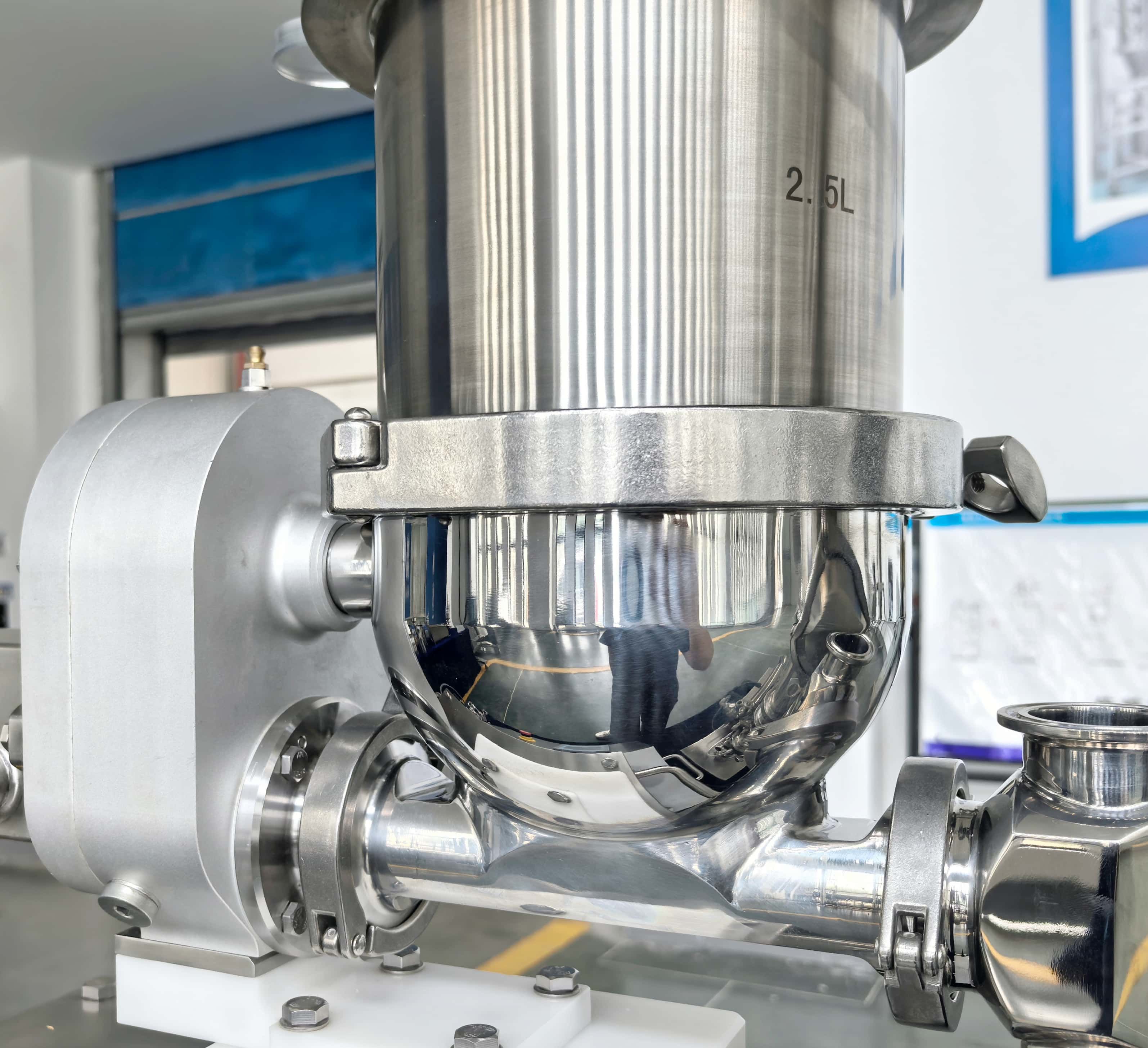

Twin-screw feeding

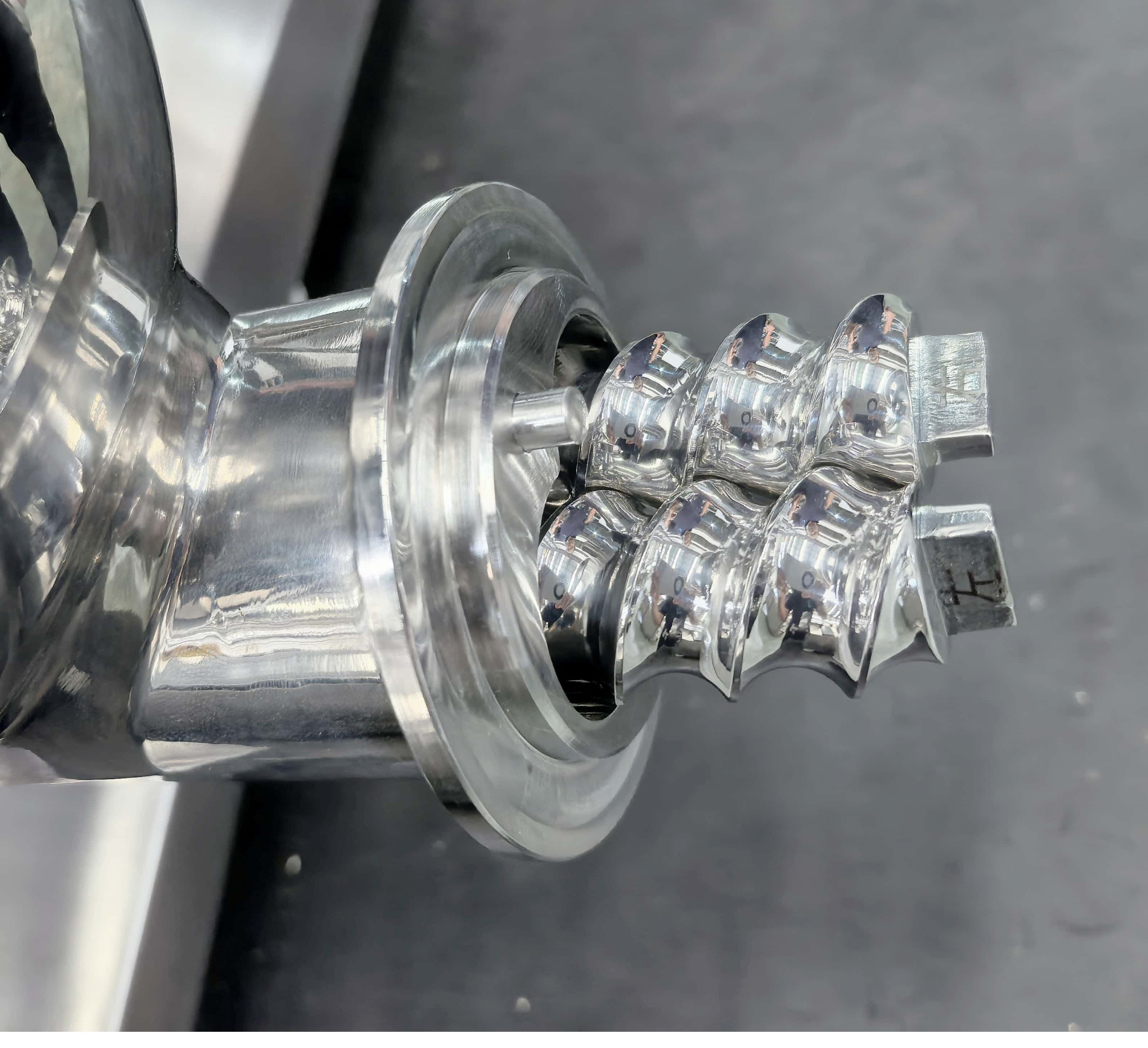

In a barrel with an "8"-shaped cross-section, the material is pushed and sheared by two meshing screws, and is uniformly and stably transported to the crushing chamber for crushing.
Classification:
Email:
export@cqlypz.com
Twin-screw feeding
- Stable Conveying Speed
- Materials Conveying for Each Batch ≥ 20g
- Applicable to Various Materials
- Easy to Assemble and Disassemble
- Low Material Friction and Heat Generation
- Can be used in conjunction with various devices
Application
Conveying of various materials, especially poorly flowable materials and active pharmaceutical ingredients(APIs)
main components
Item | Unit | model | |||
SFS-10 | SFS-20 | SFS-25 | SFS-30 | ||
| Feed ability (reference material: lactose) | Kg/h | ＜4.0 | ＜25 | ＜60 | ＜120 |
| Screw size | mm | 10 | 20 | 25 | 35 |
| Servo motor power | W | 100 | 400 | 400 | 400 |
| Feed bucket volume | L | 1 | 4 | 4 | 12 |
| speed | r/min | 1～300 | 1～300 | 1～300 | 1～300 |
| power | V/HZ | 220/50 | 220/50 | 220/50 | 220/50 |
| Configuration | N/A | Adapcan for all API particle-processing equipment | |||
