Jet mill laboratorial（MC-50）
Suitable for dry ultrafine grinding of various brittle, crystalline, thermosensitive, and low to medium hardness materials. Applied in industries such as chemical, pharmaceutical, and food, it has high efficiency and no dust leakage.
Classification:
Email:
Jet mill laboratorial（MC-50）
- Extremely narrow particle size distribution curve
- Low temperature media free crushing, suitable for heat sensitive, low melting point, sugar containing, and volatile materials
- Easy to install and remove, quick cleaning and cleaning verification
- Sealed crushing, low dust, low noise, clean and environmentally friendly
- modular design
- Easy to clean inner surface
- Low product loss rate
Application
Jet mill is a device that uses the energy of high-speed airflow to generate impact, collision, and friction between particles, achieving ultrafine pulverization. It can pulverize materials to 1-50 microns (D90).
main components

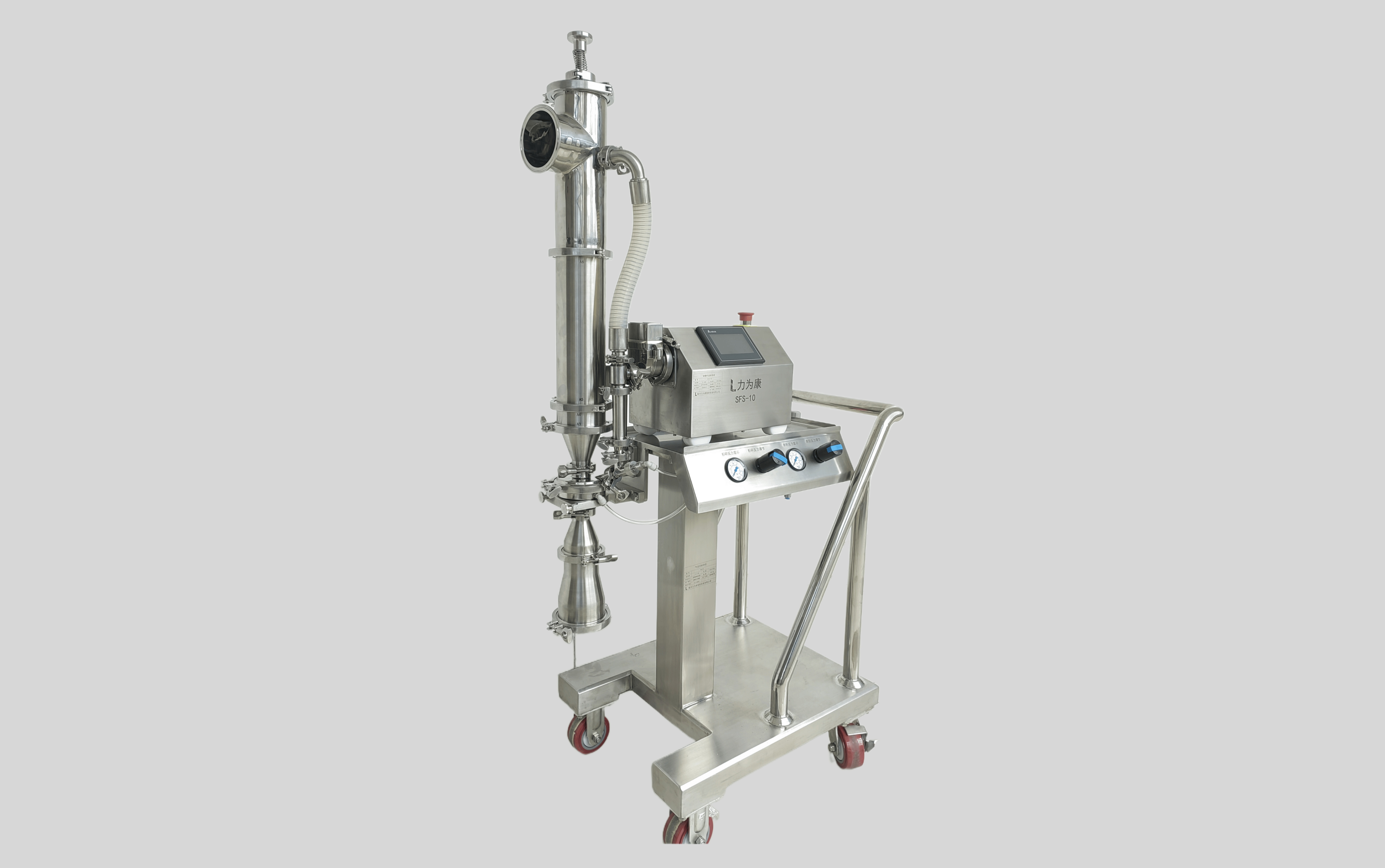

mobile

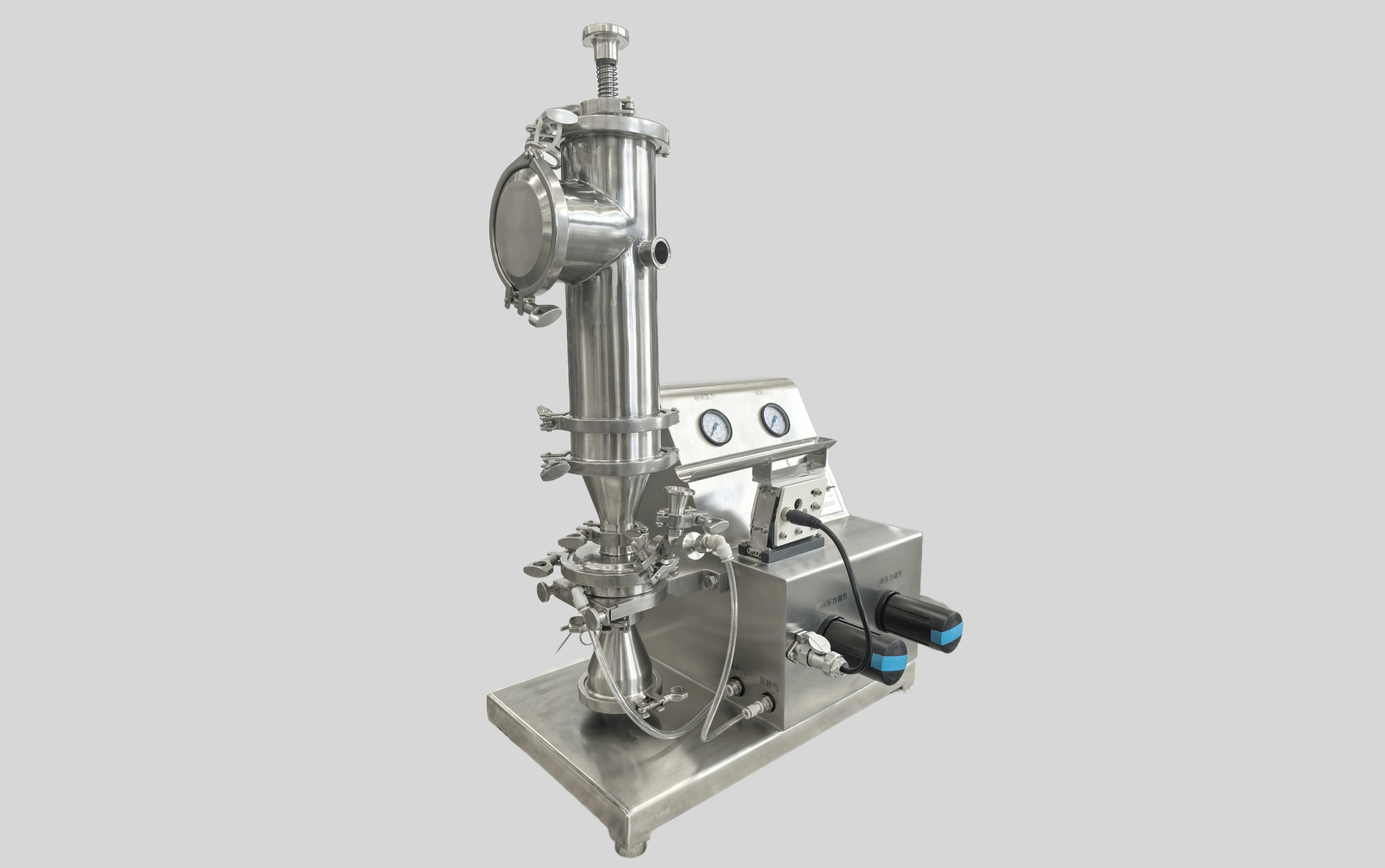

desktop

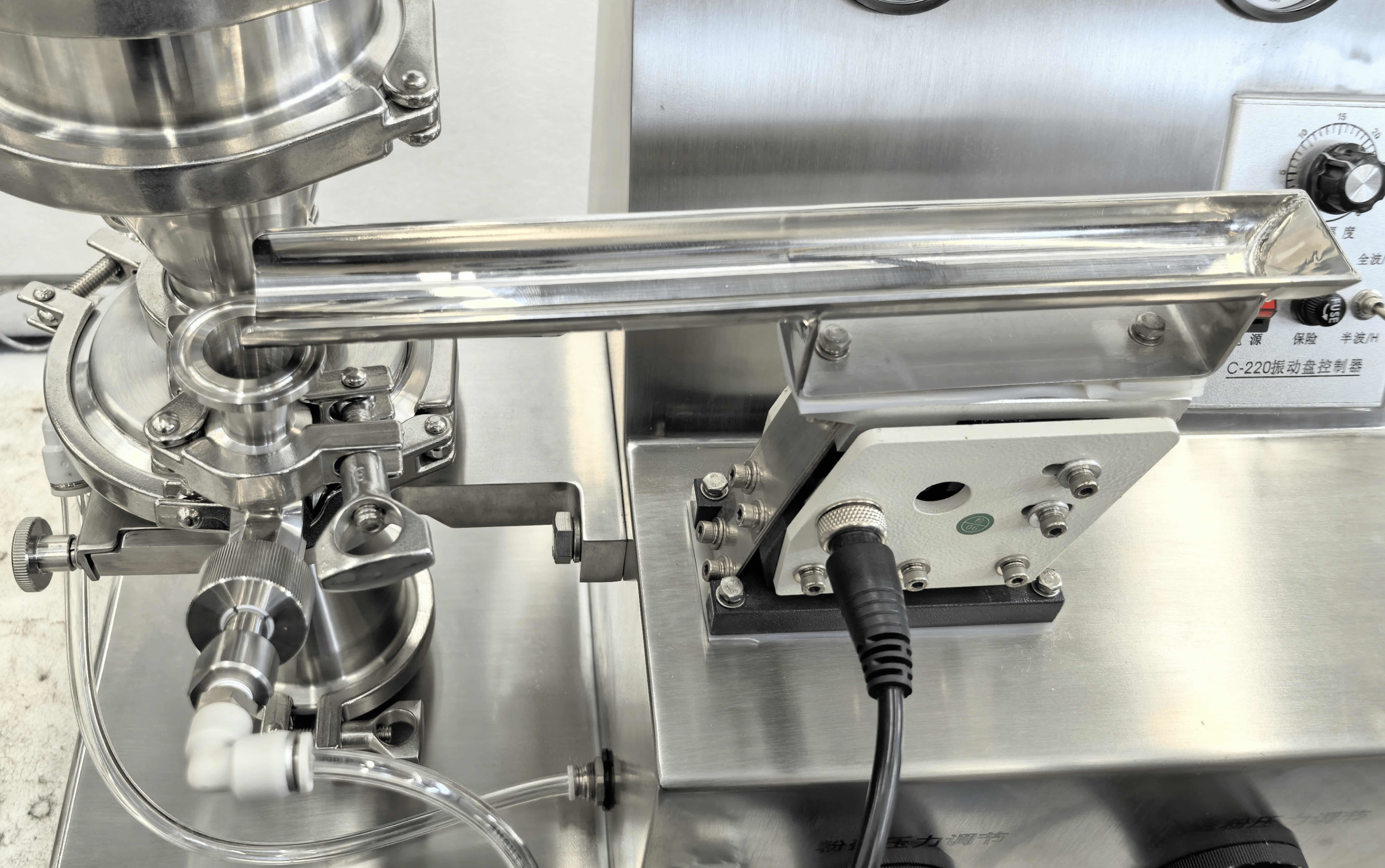

power feeding

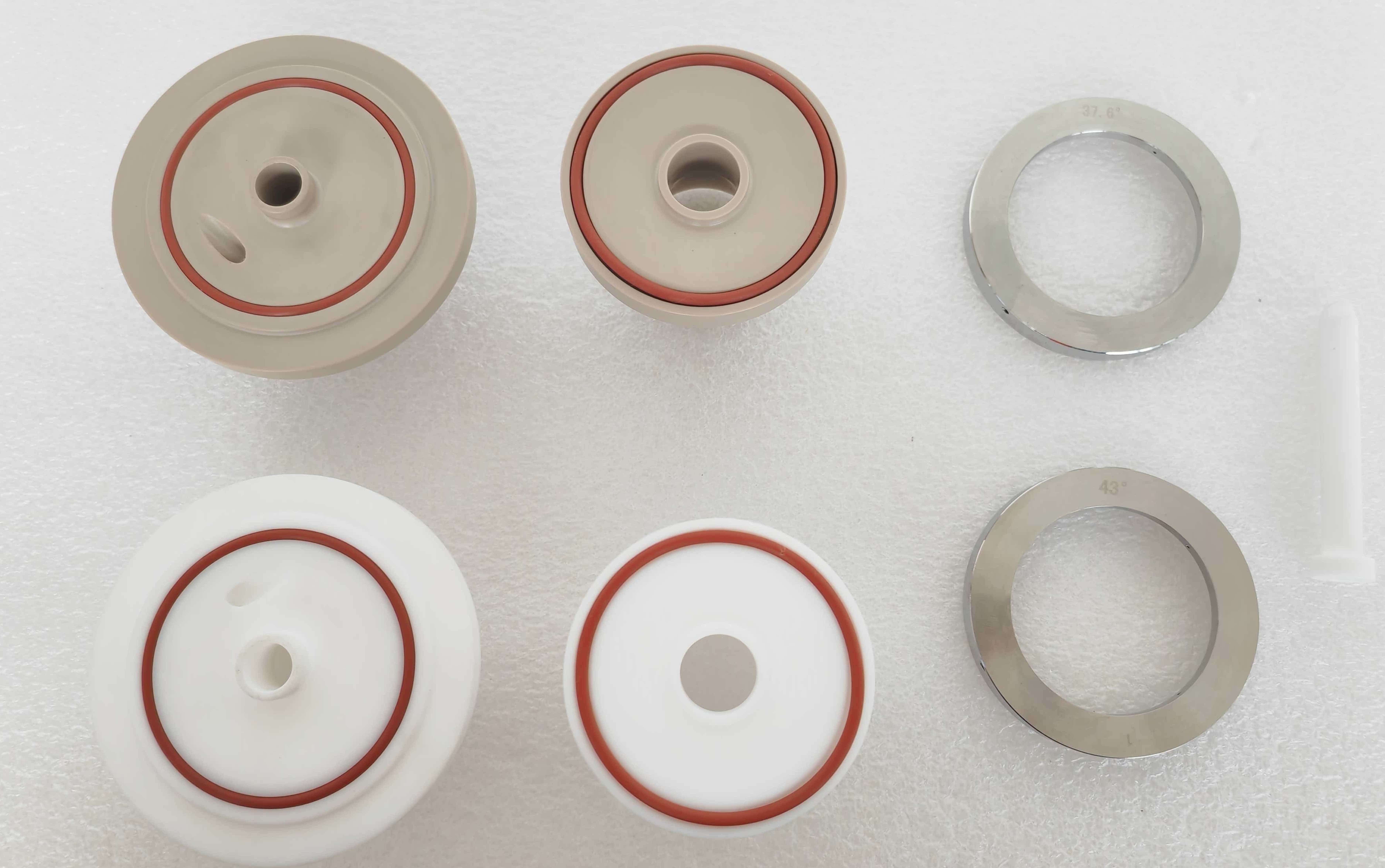

Multiple types of working chambers

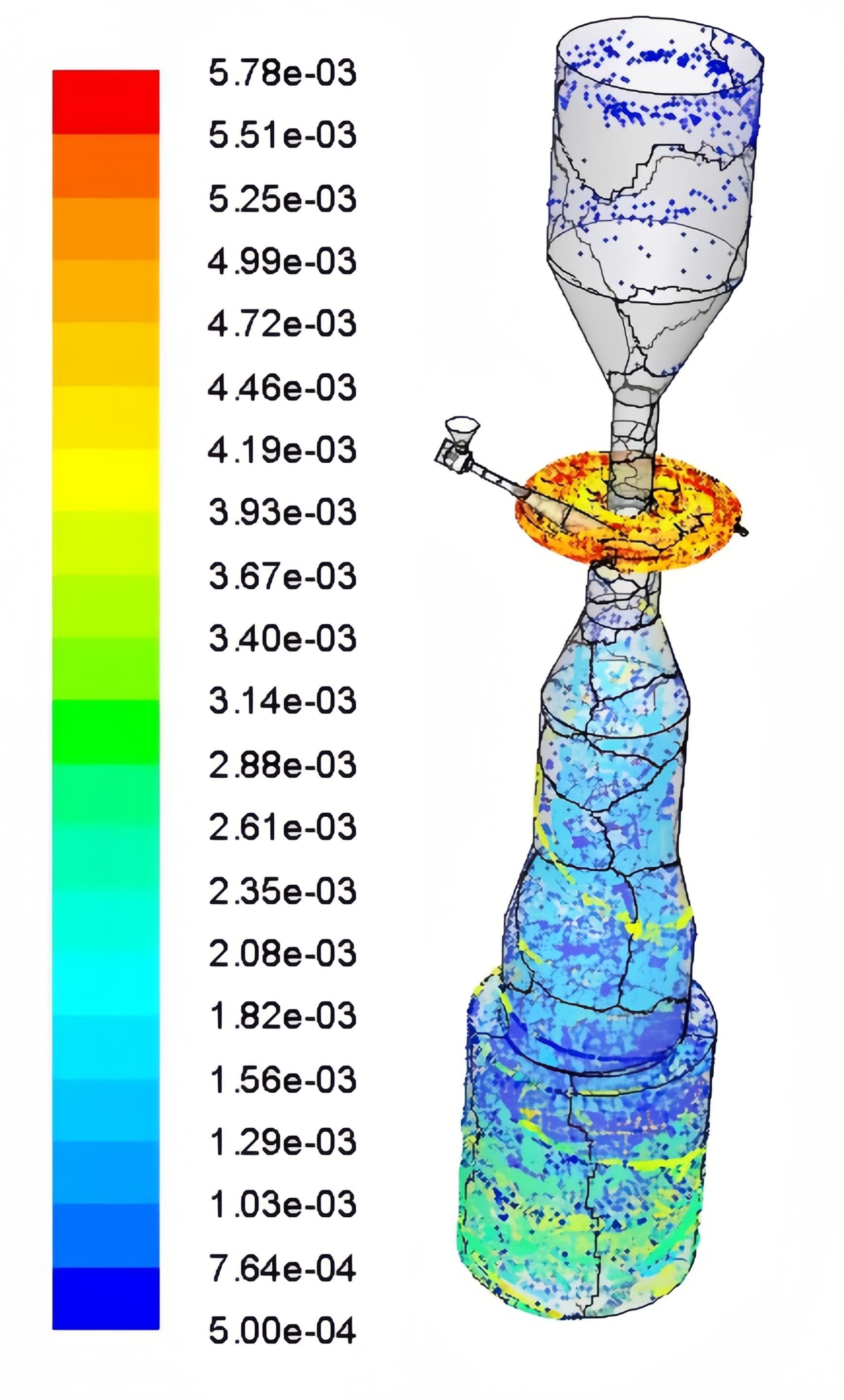

Main factors affecting the crushing effect
- Design of working chamber
- Crushing pressure (powder feeding pressure+crushing pressure)
- powder feed rate
- Gas nozzle parameters (diameter, angle, structure, position)
- Material properties
- Application of dispersants and grinding aids
Partial experimental data sharing of hammer mill
| Material Name | feature | Before the experiment | Before the experiment |
| Orlistat | weight-loss drugs | / | 28-33μm |
| Pioglitazone | Crystal particles | 200 | 4.2 |
| Perampanel | Epilepsy medication | 40 | 7.56 |
| calcium | Good liquidity and easy crushing | 105 | 4.5 |
| Astragalus | Chinese herbal medicine | 50.8 | 8.3 |
| Ganoderma | Chinese herbal medicine | 125 | 10.8 |
| loratadine | anti-allergy drugs | pin mill once | 3.9 |
| Meloxicam | Yellow, becomes lighter after crushing | 32.2 | 5 |
| magnesium | Good liquidity and easy crushing | 129 | 4.5 |
| tetracycline | yellow | 56.2 | 4.02 |
| titanium dioxide | White pigment, nano-sized particle aggregation | nanoscale | 0.69 |
| Microcrystalline cellulose | / | 179 | 7.76 |
| Nifedipine | Yellow, light-proof, alcohol-soluble | / | 3.17 |
| calamine | powder | lumps | 4.6 |
Item | Unit | model | ||||
MC-50 | MC-100 | MC-150 | MC-200 | MC-300 | ||
Niminal diameter | mm | 50 | 100 | 150 | 225 | 300 |
Capacity | kg/h | 0.035--0.2 | 0.05--4.0 | 0.5--20 | 0.5--35 | 5-150 |
Batch | kg/Batch | 0.0015--0.5 | 0.05--5 | 0.2--15 | 1--500 | 5-1000 |
Nm³/min | 0.2 | 0.42 | 0.73 | 1.7 | 3.9 | |
particle size | μm | 1-30 | ||||
12bar consumption | Nm³/min | N/A | 0.71 | 1.4 | 2.8 | 6.8 |
Installed power | kW | 0.2 | 0.4 | 1.5 | 3 | 3 |
Dimension | mm | 900*500*1700 | 1100*700*1900 | 2100*900*2400 | 3200*1800*2900 | 3200*1800*2900 |
| power | V/Hz | 220/50 | 380/50 | |||
Double screw feeder | N/A | SFS-10 | SFS-20 | SFS-25 | SFS-35 | SFS-35 |
optional | N/A | Vector powder feeding system / isolator / constant temperature and humidity air system | ||||
