cone mill head
Working principle: The whole grain machine utilizes the high-speed relative motion between the rotor and the screen to quickly granulate the lump-like materials under the rolling pressure of the rotor, passing through the screen holes. The finished granules are instantly discharged, with low heat generation, high efficiency, and good quality.
Classification:
Email:
cone mill head
- Low heat generation
- High efficiency
- Modular Design
- Small screen aperture with high precision
- Easy to assemble and disassemble
- Four types of granulating screens (round,square,fish scale,and special-shaped holes)
- Independently designed right-angle transmission system and shaft sealing technology
Application
Granulation can be performed according to the desired particle size, making it an ideal equipment for processing low-viscosity agglomerates,gum-like materials,and wet substances.
main components
blade
square blade
round blade
tooth blade
bagua blade

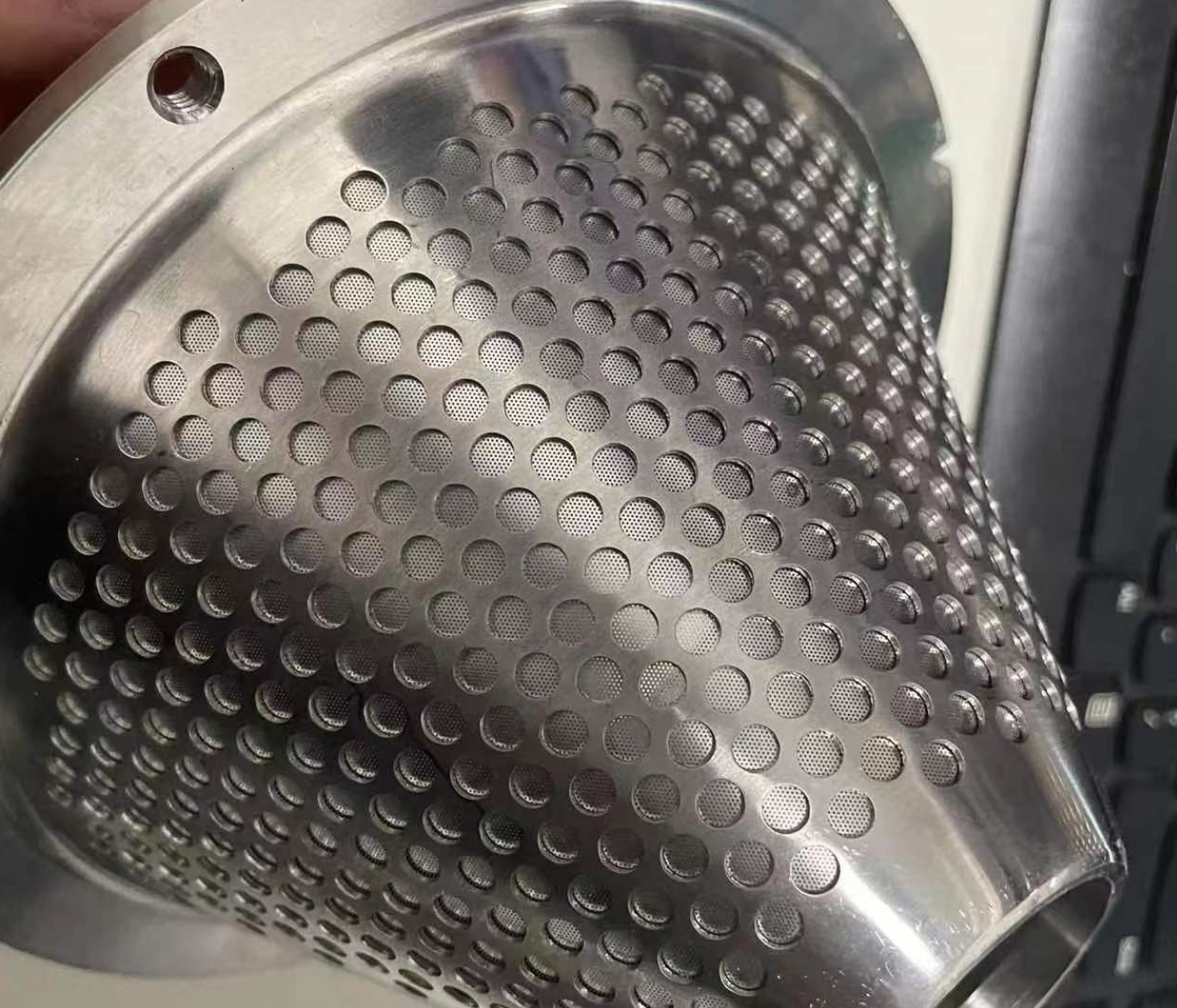

square hole
round hole

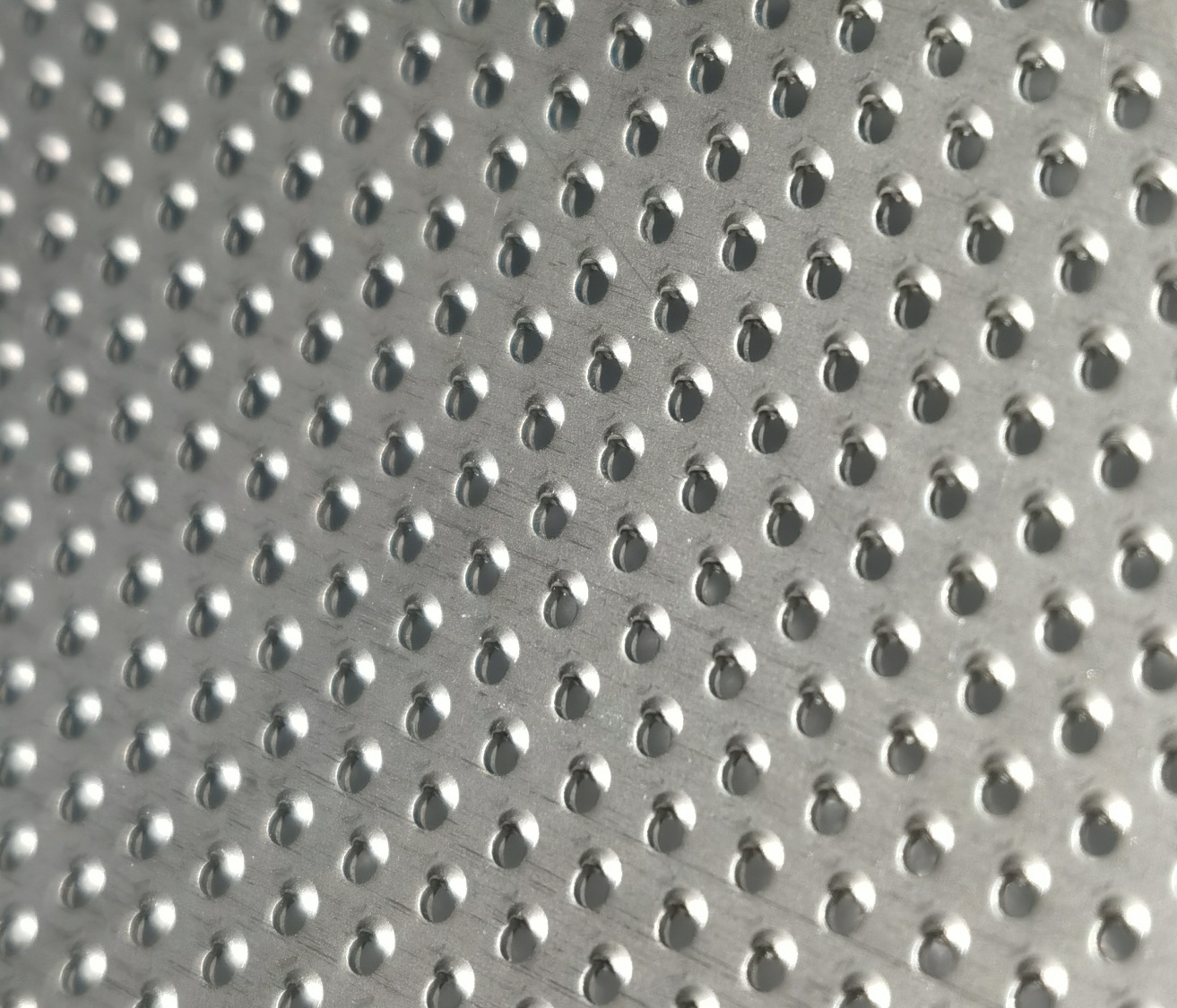

Friction hole
Double-layer
Transmission system

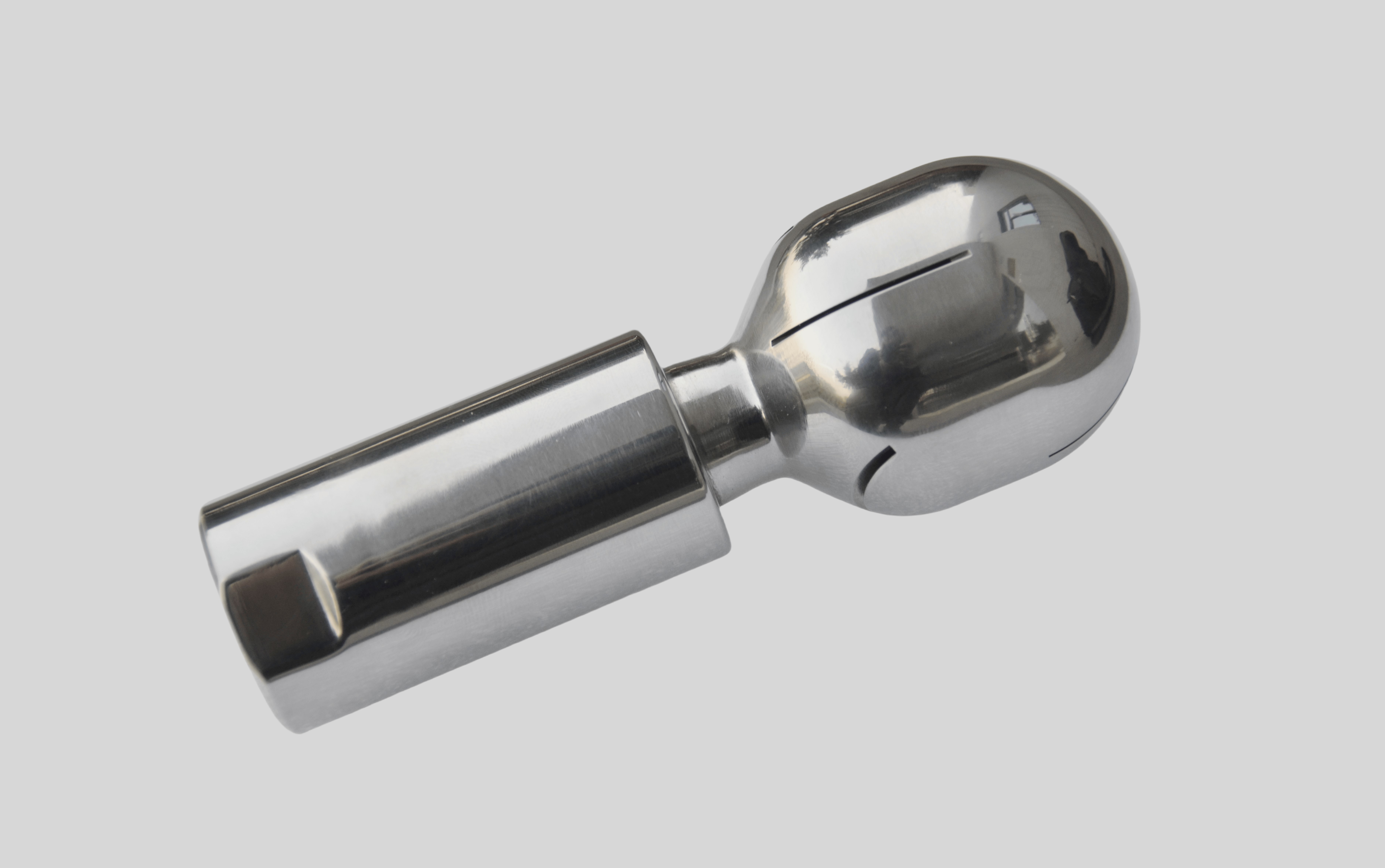

cleaning ball
Dispersing blade

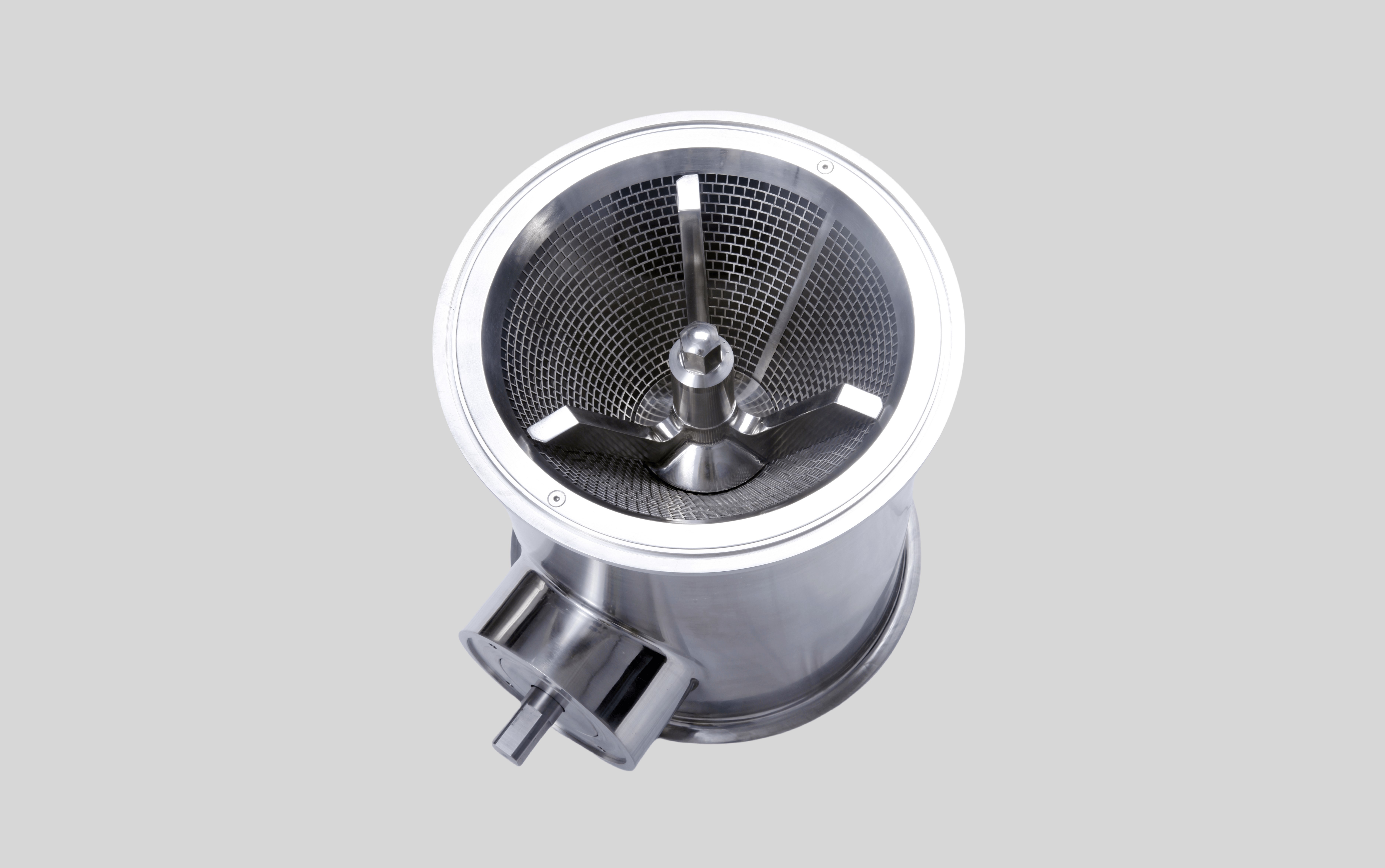

head
certificate
The first and only one in China to obtain the explosion-proof certificate for the entire machine（Explosion proof optional）.
CE
explosion-proof
explosion-proof
explosion-proof
| Item | Unit | model | ||||||
| ZLJ-100 | ZLJ-125-Y | ZLJ-150-Y | ZLJ-208-Y | ZLJ-250-Y | ZLJ-270-Y | ZLJ-300-Y | ||
| Capacity | kg/h | ≤50 | ≤250 | ≤500 | ≤1500 | ≤2500 | ≤3000 | ≤6000 |
| Power of motor | kw | 0.75 | 2 | 3 | 5.5 | 5.5 | 5.5 | 5.5 |
| particle size | μm | 150~10000 | ||||||
| Maximum speed | r/min | 3000 | 2000 | 1450 | 1000 | 960 | 960 | 960 |
| Installed capacity | kw | 1 | 2.2 | 3.2 | 5.7 | 5.7 | 5.7 | 5.7 |
| Dimension | mm | 700*350*700 | 1050*450*1500 | 1050*450*1500 | 1500*700*1750 | 1550*700*1800 | 1550*700*1950 | 1850*750*1950 |
| power | V/Hz | 220/50 | 380/50 | |||||
| blade | N/A | round / square / tooth / bagua | ||||||
| Optional item | N/A | The equipment is explosion-proof | ||||||
| Centrifugation screening function | ||||||||
| Electric lift | ||||||||
| Vacuum feed function | ||||||||
| Screen mesh （Round） | mm | Φ0.4--Φ10.0 | ||||||
| Screen mesh （Square） | 2*2--20*20 | |||||||
| Screen mesh （friction） | Φ0.8--Φ3.0 | |||||||
| Screen mesh （Customized） | customize according to the diagram | |||||||
