Wet granulation spray gun
Classification:
Email:
export@cqlypz.com
Wet granulation spray gun
Atomization

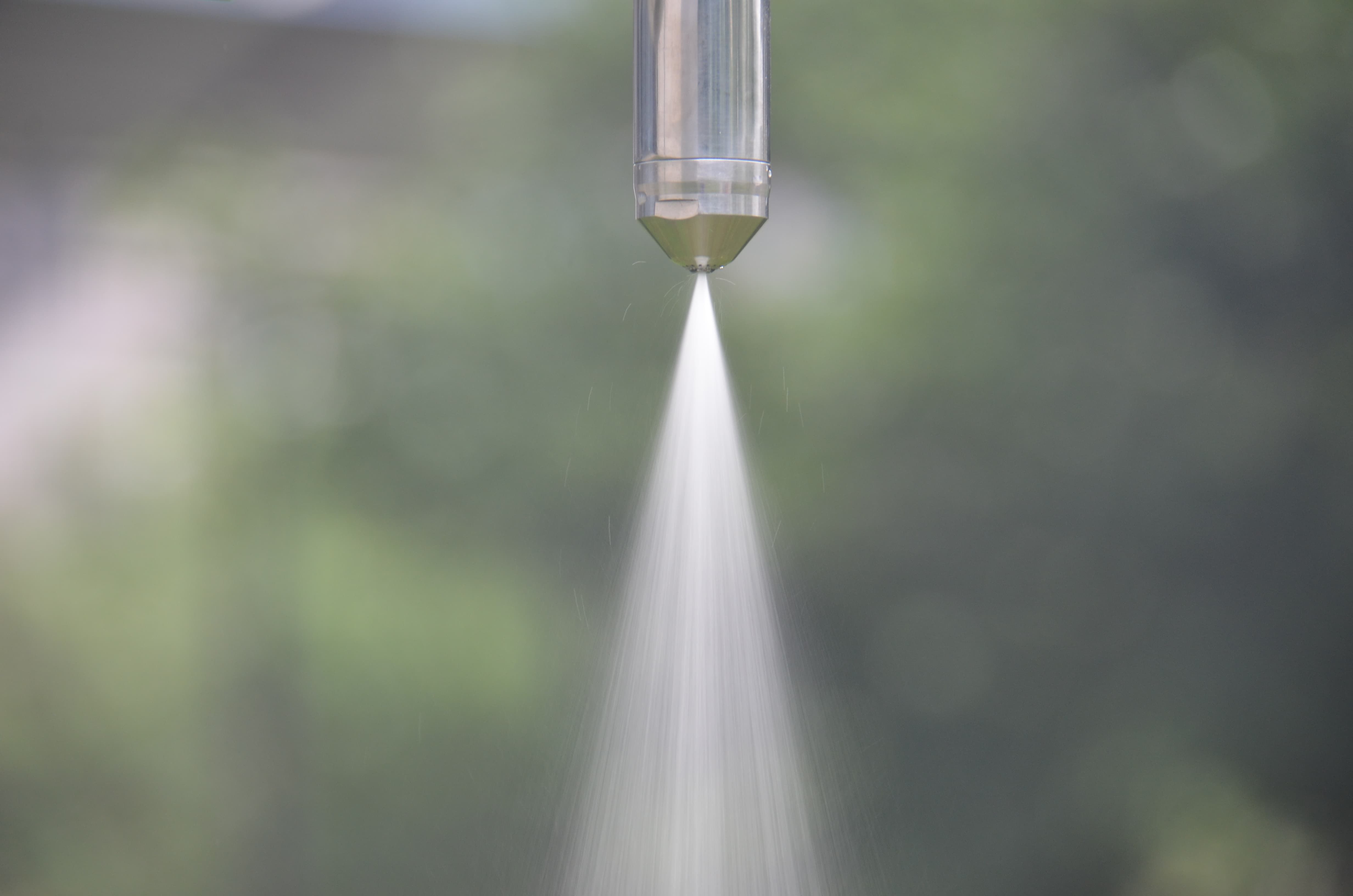

atomization gas not turn on

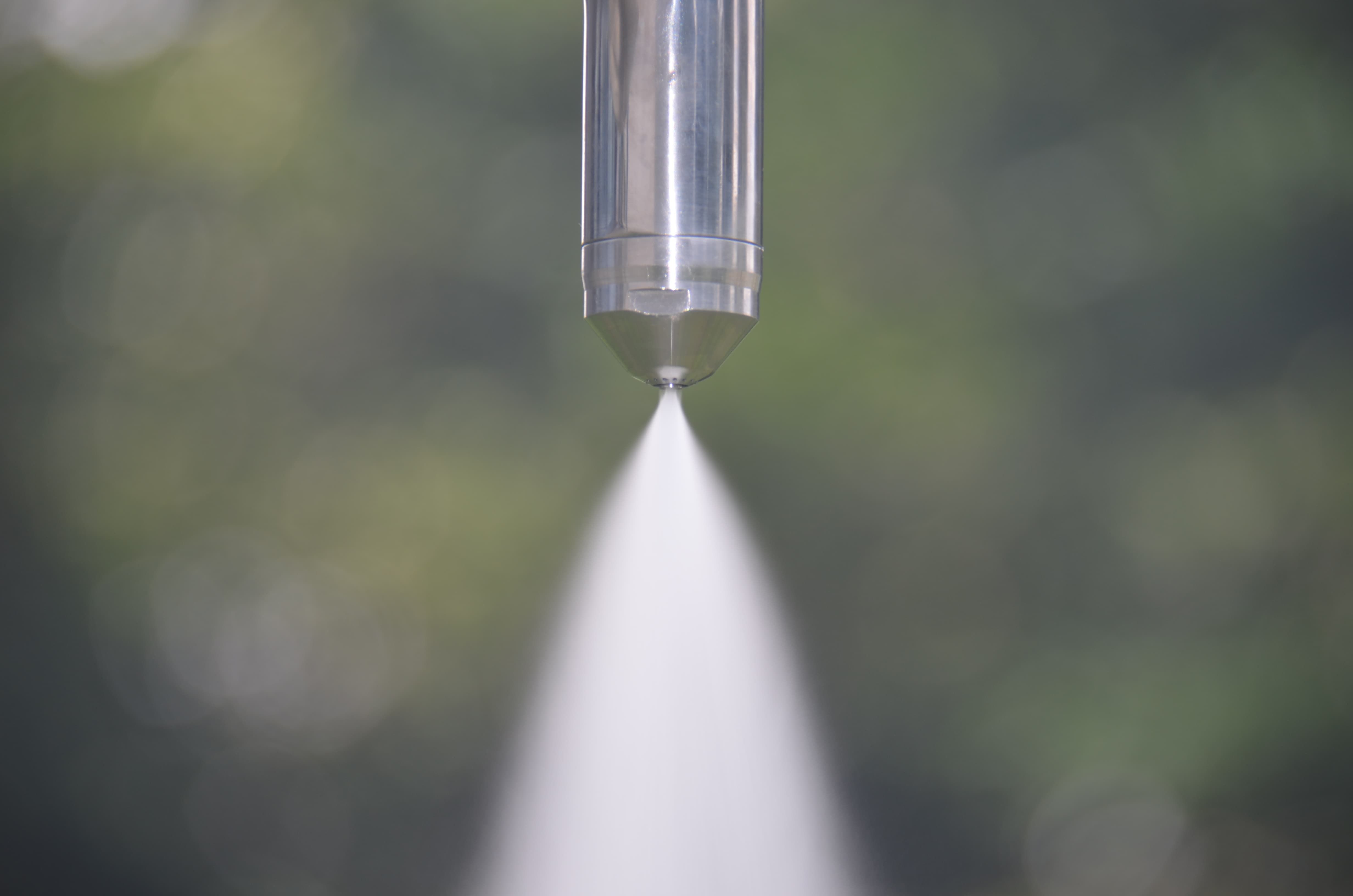

atomization gas turn on
Model
| Model | atomization pressure （Mpa） | fluid pressure （Mpa） | atomization angle | nozzle parameter（mm） | Maximum spray volume （Peristaltic pump infusion ≤ 0.2Mpa, using water as the medium） |
| ELS-SFPQI | 0.05-0.2 | 0.1-0.5 | 60-70° | φ0.6 | 0.25L/min |
| φ0.8 | 0.4L/min | ||||
| φ1.0 | 0.6L/min | ||||
| φ1.2 | 0.9L/min | ||||
| ELS-SFPQII | φ1.5 | 1.4L/min | |||
| φ1.8 | 1.8L/min | ||||
| φ2.0 | 2.3L/min | ||||
| φ2.5 | 2.5L/min | ||||
| φ3.0 | 4.6L/min | ||||
| ELS-SFPQIII | φ3.5 | 6L/min | |||
| φ4.0 | 8L/min | ||||
| φ4.5 | 10L/min | ||||
| φ5.0 | 13L/min | ||||
| φ6.0 | 20L/min | ||||
| φ7.0 | 30L/min | ||||
| φ8.0 | 40L/min | ||||
| φ10.0 | 60L/min |
Due to equipment updates or upgrades, all the above data shall be subject to the final signed contract.
