Retractable Cleaning Ball
The cleaning ball rotary head is made of PEEK Material suitable for all industrial cleaning applications, including tanks, reactors Container.
Classification:
Email:
Retractable Cleaning Ball
Working principle
The cleaning head extends from the housing under the drive of liquid pressure, and the cleaning agent jet rotates the cleaning head. The fan-shaped jet forms a vortex in the entire tank, generating the spraying force required to effectively remove residual products, and can clean all the inner surfaces of the container.
Hammer mill cleaning test

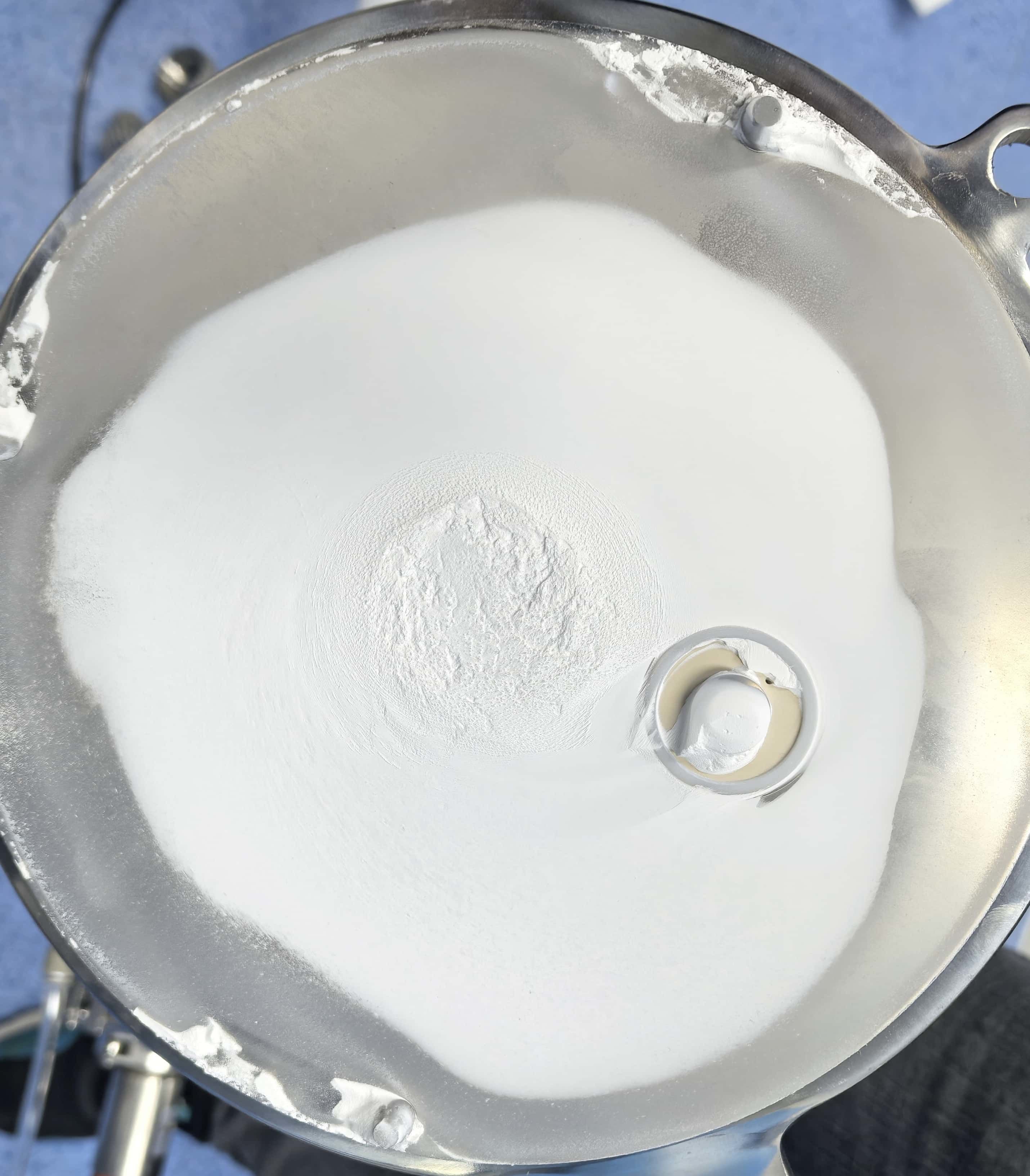

Before cleaning - chamber cover

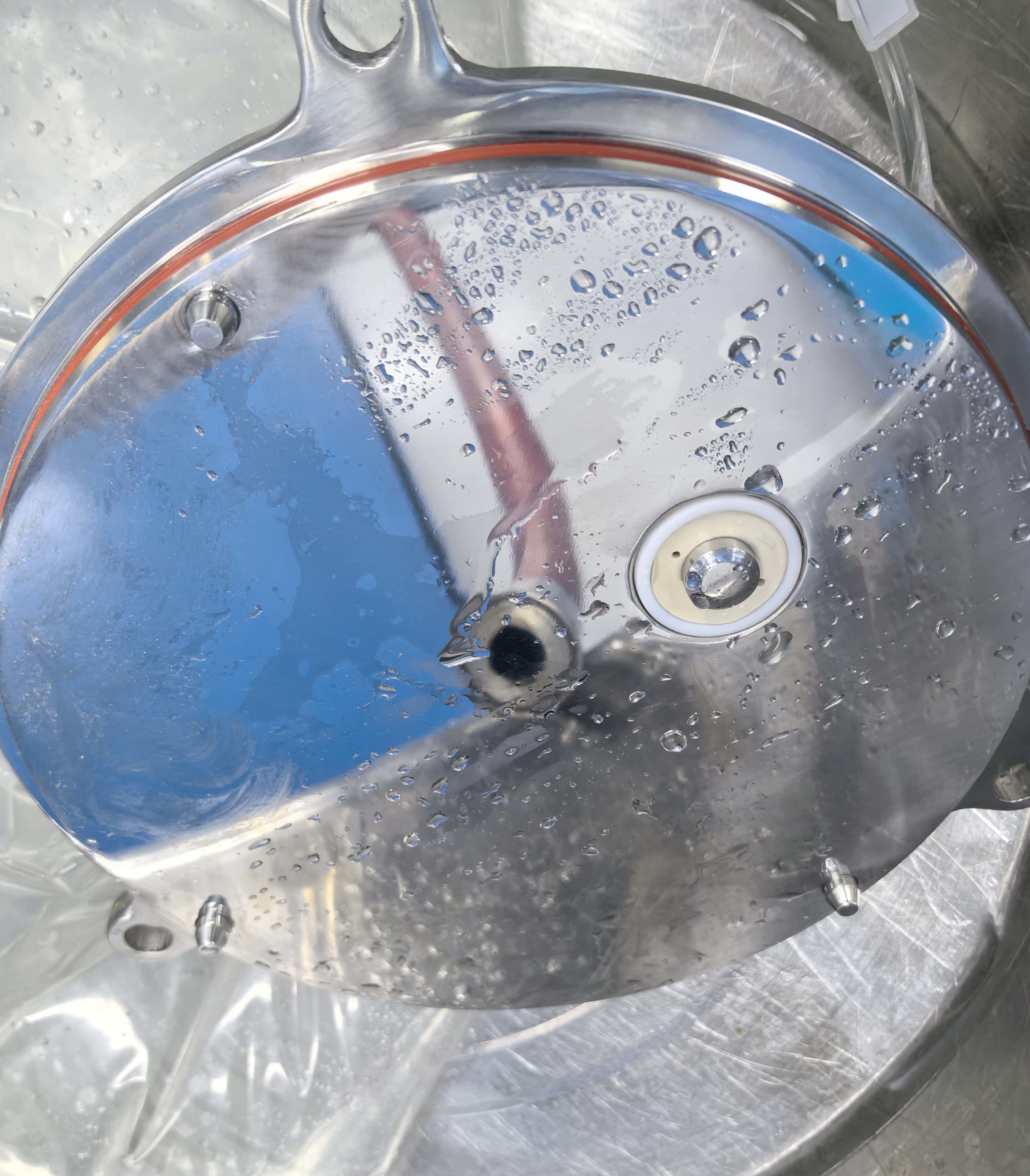

After cleaning - chamber cover

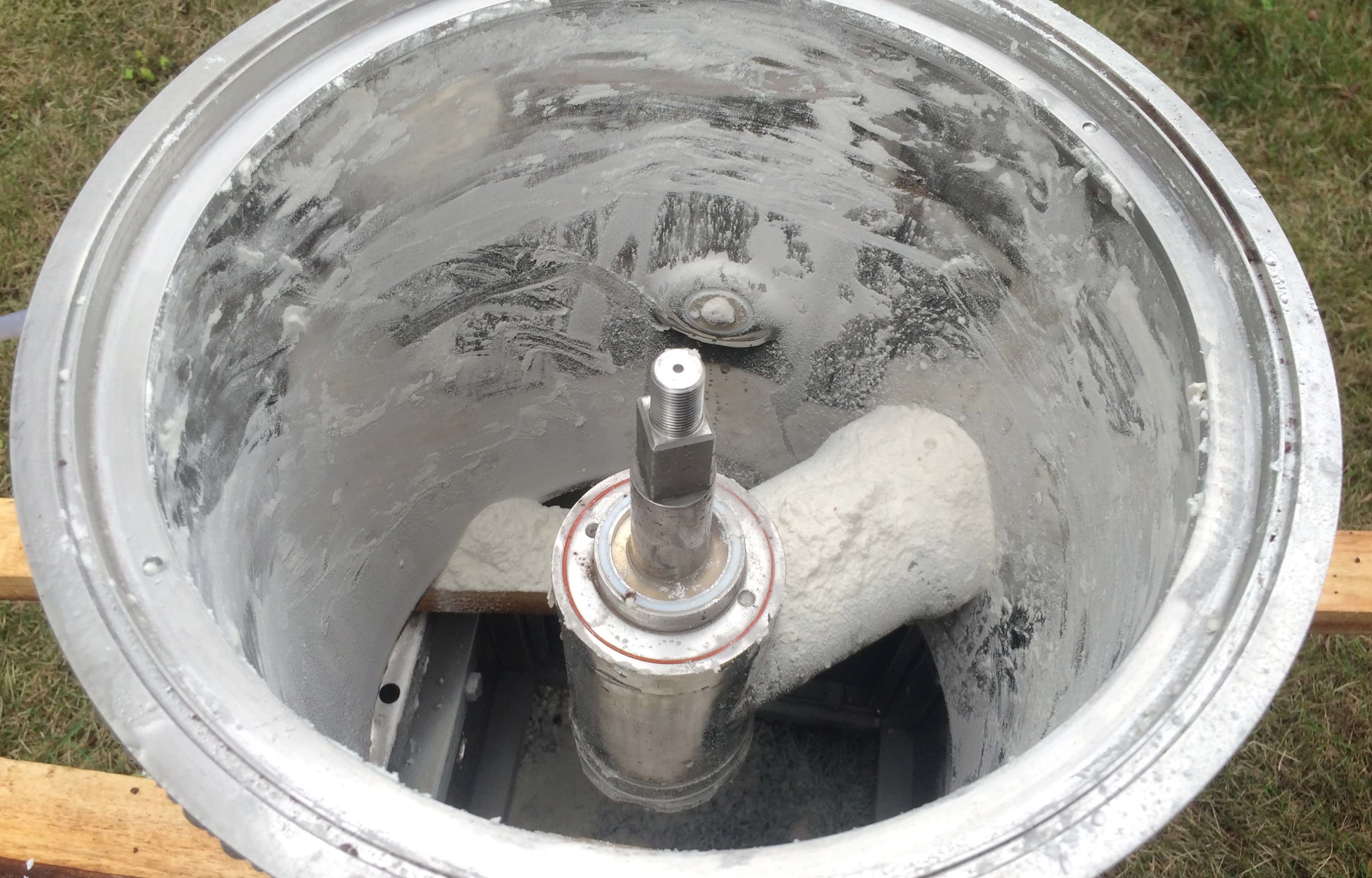

Before cleaning - working chamber

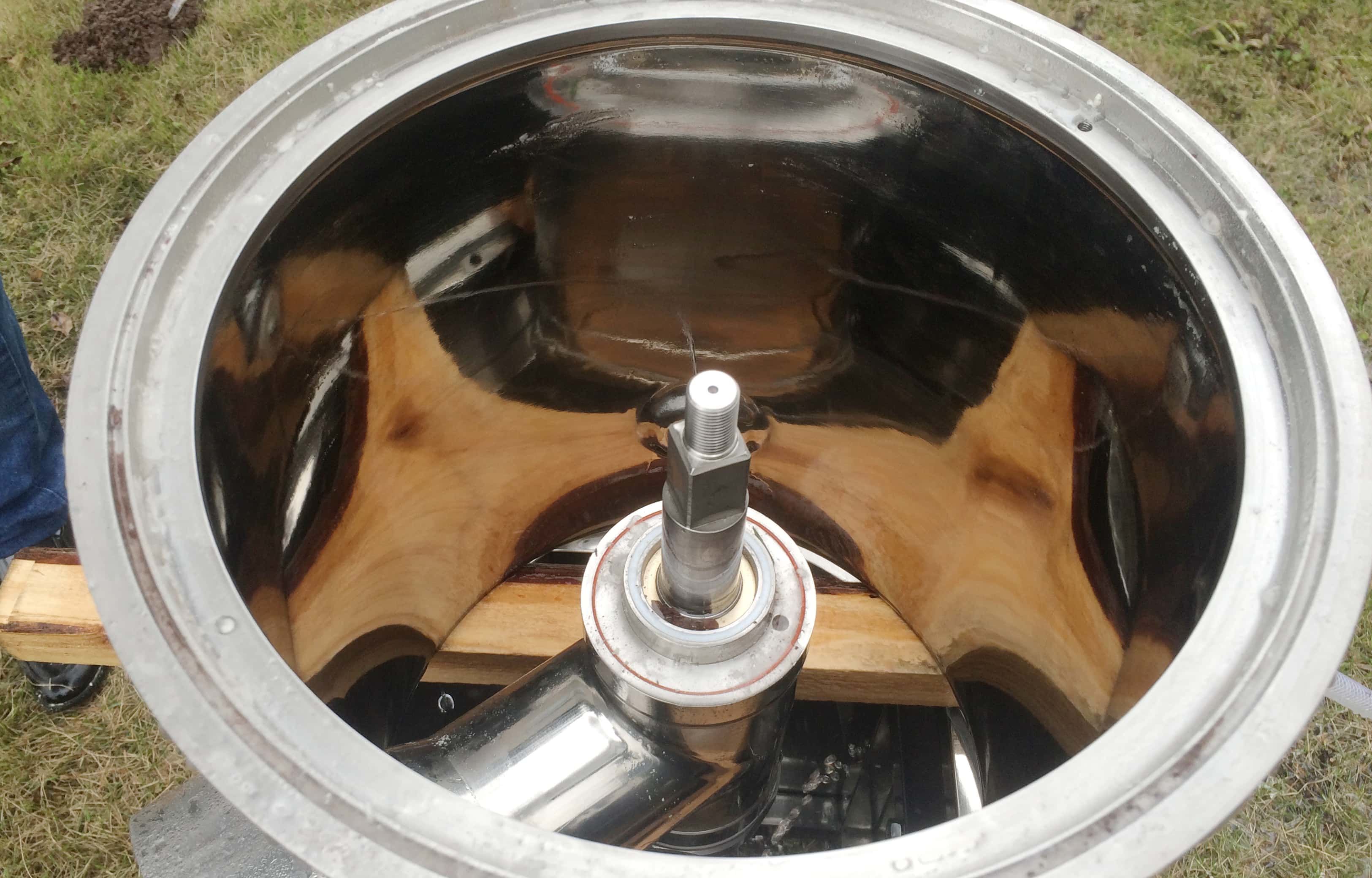

After cleaning - working chamber
Cone mill cleaning test

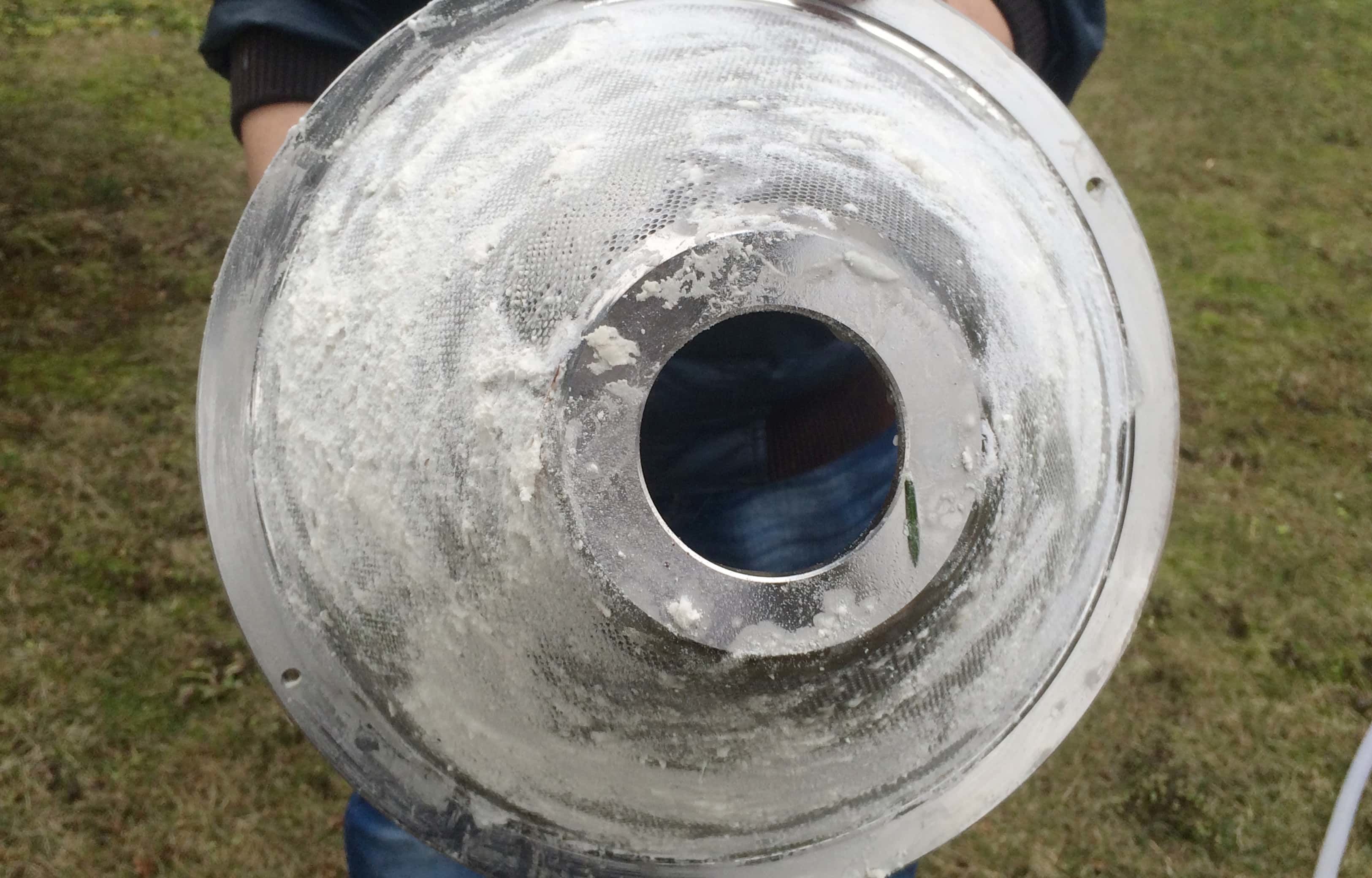

Before cleaning - screen sieve

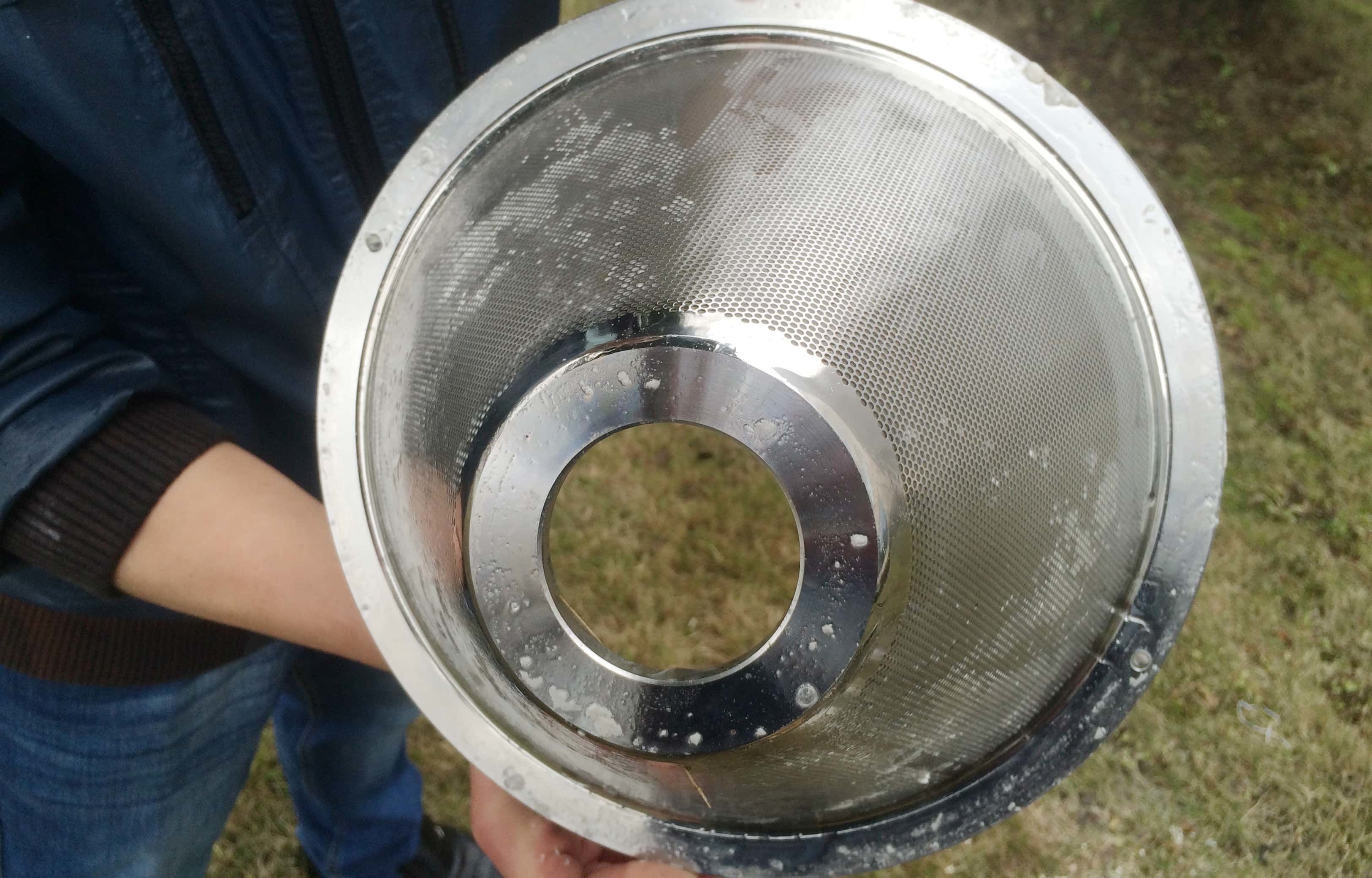

After cleaning - screen sieve

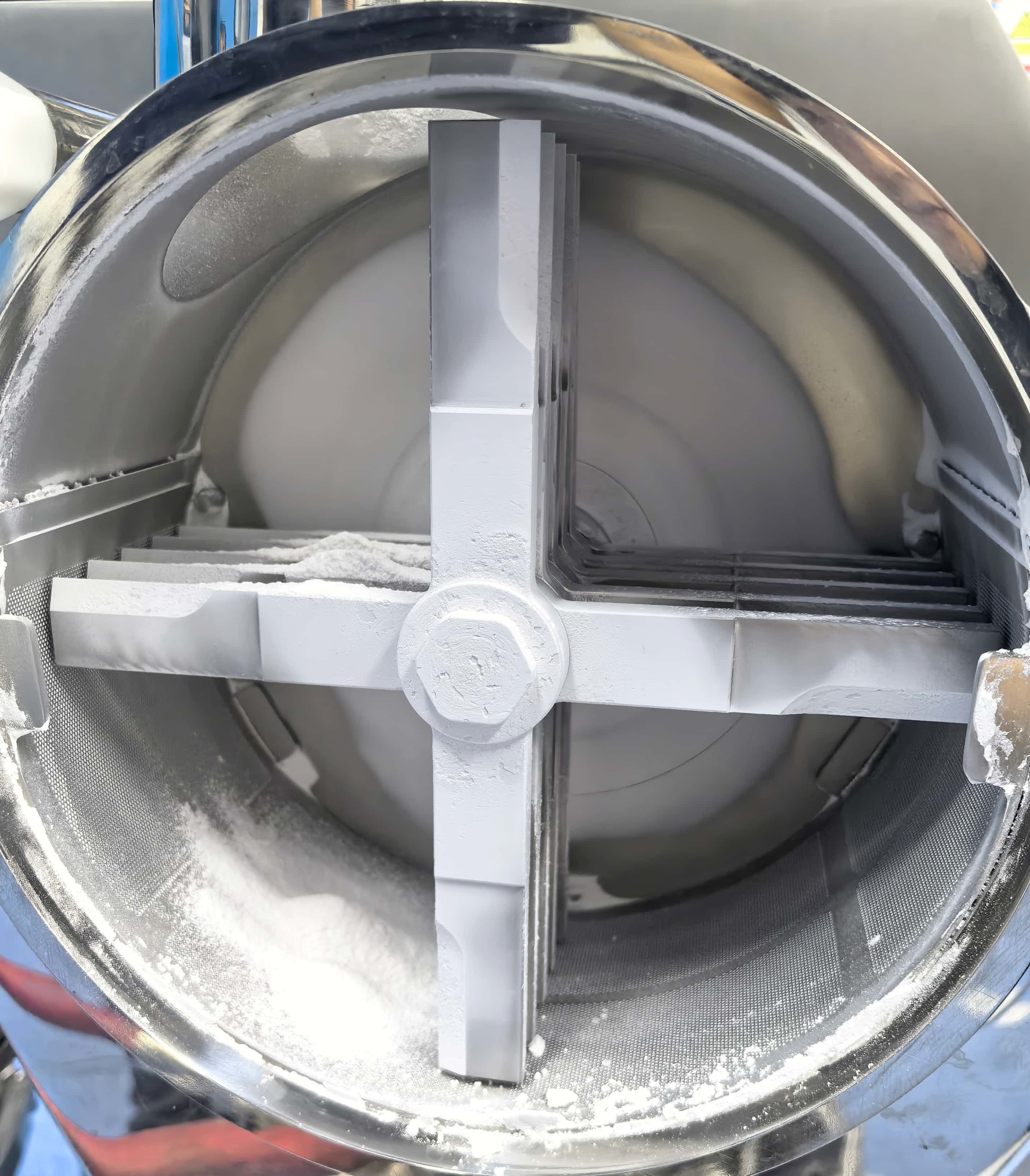

Before cleaning - cylinder

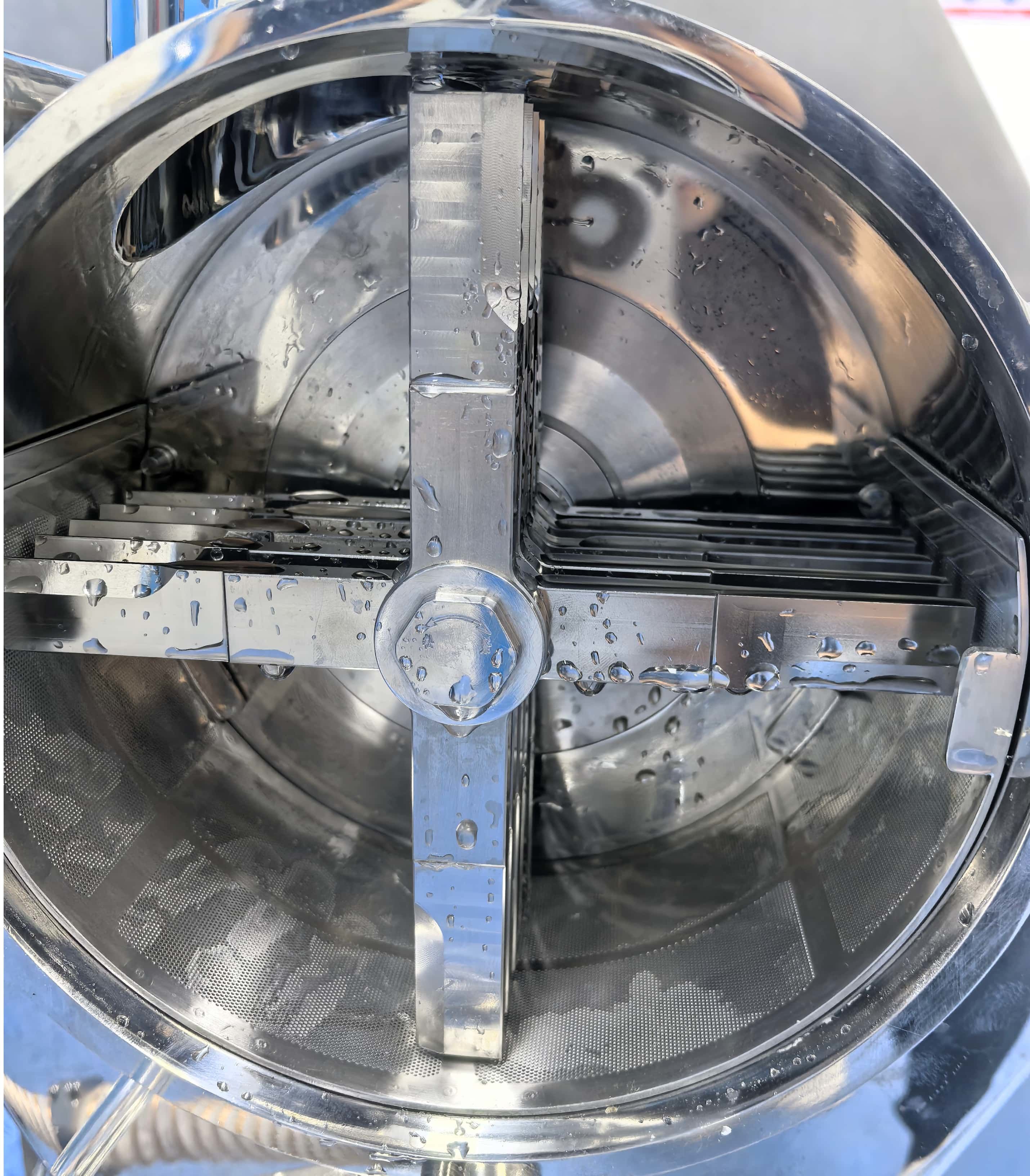

After cleaning - cylinder
Model
| Model | Work pressure | Recommend pressure | Wetting radius | Cleaning radius | Max temperature | Spray pattern | Interface | Materail | |||
| bar | bar | m | m | ℃ | A | 01 | 02 | 03 | spray head | other | |
| thread | pipe | clamp | |||||||||
| S25 | 1-3 | 2 | 2.0 | 1.0 | 100 | 360° | G1/2 G3/4 | φ38*1.5 | 1½ | PEEK | 316L |
Due to equipment updates or upgrades, all the above data shall be subject to the final signed contract.
