Device Description:

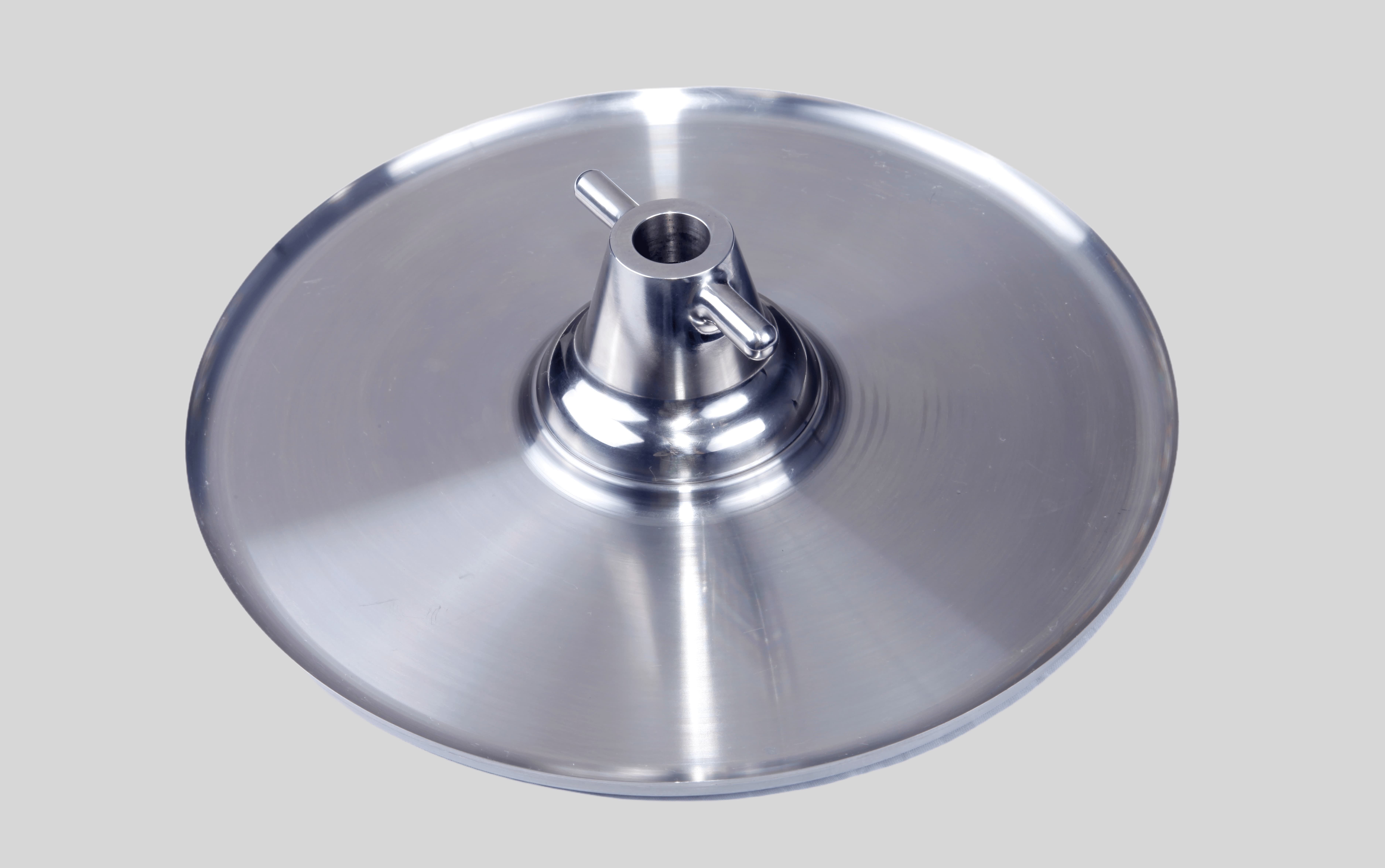

　　The multifunctional pellet making and granulating coating machine adopts a modular design, and different functional modules can be added according to usage needs to realize free switching between centrifugal pelletizing, extrusion rolling, and cutting spray pelletizing. Through the quick conversion of the rotating disc and toothed disc, this machine has multiple functions such as priming, granulating, coating, pressing, and rolling. It has two micro-pellet preparation methods: centrifugal pelletizing and tangential spray pelletizing. Finished micro-pellets can also be put into the material tank and sprayed with atomized coating liquid for coating. The micro-pellets have good sphericity, uniform size, and high drug utilization rate, suitable for sustained-release drug granulation, enteric drug granulation, micro-pellet coating, etc. It is an ideal equipment for exploring micro-pellet preparation processes and formula development.

　　Micro-pellets have been widely used in the field of pharmaceutics. As a drug carrier, it can be further pressed into tablets or filled into empty capsules, not only improving drug stability but also effectively regulating the drug release rate; as a drug delivery system, micro-pellets have therapeutic advantages such as less gastrointestinal irritation and reduced risk of drug burst release, improving drug safety and good blood concentration reproducibility; micro-pellets also have good fluidity, low friability, and easy filling.

　　In pharmaceutical production, compared with other pelletizing methods, extrusion rolling technology, as an advanced process method widely used in the international pharmaceutical industry, has the following characteristics:

　　- The process operation is carried out in a wet state, completely eliminating dust.

　　- Product yield exceeds 99%. The particle size distribution is narrow, and the qualified product rate reaches more than 90%.

　　- The micro-pellets have good roundness, good strength, and a density of 0.8g/cm3 or higher, which is conducive to producing film-coated tablets with uniform film.

　　- Micro-pellets have a large drug loading capacity, and the drug loading capacity has a wide variable range.

　　- It is easy to achieve mixing of incompatible active ingredients.

　　- Enzyme activity loss is small during enzyme preparation, as low as less than 10%.

　　- The single-line production capacity can reach up to 200kg/hour (production equipment), with high efficiency, low cost, and low labor intensity.

　　- Good process reproducibility, parameterized process parameters, easy to control, and easy to manage scientifically.

　　In controlled-release preparations and drug utilization, many factors in extrusion rolling pelletizing can change the powder properties and drug release behavior of micro-pellets—the measurement index of micro-pellet quality, mainly including: micro-pellet particle size, roundness, friability, density, fluidity, and drug dissolution and the microstructure of the micro-pellet surface, etc.—Through independent and detailed examination of various factors, the properties of micro-pellets can be improved to achieve the expected medication purpose.

　　Technical Features:

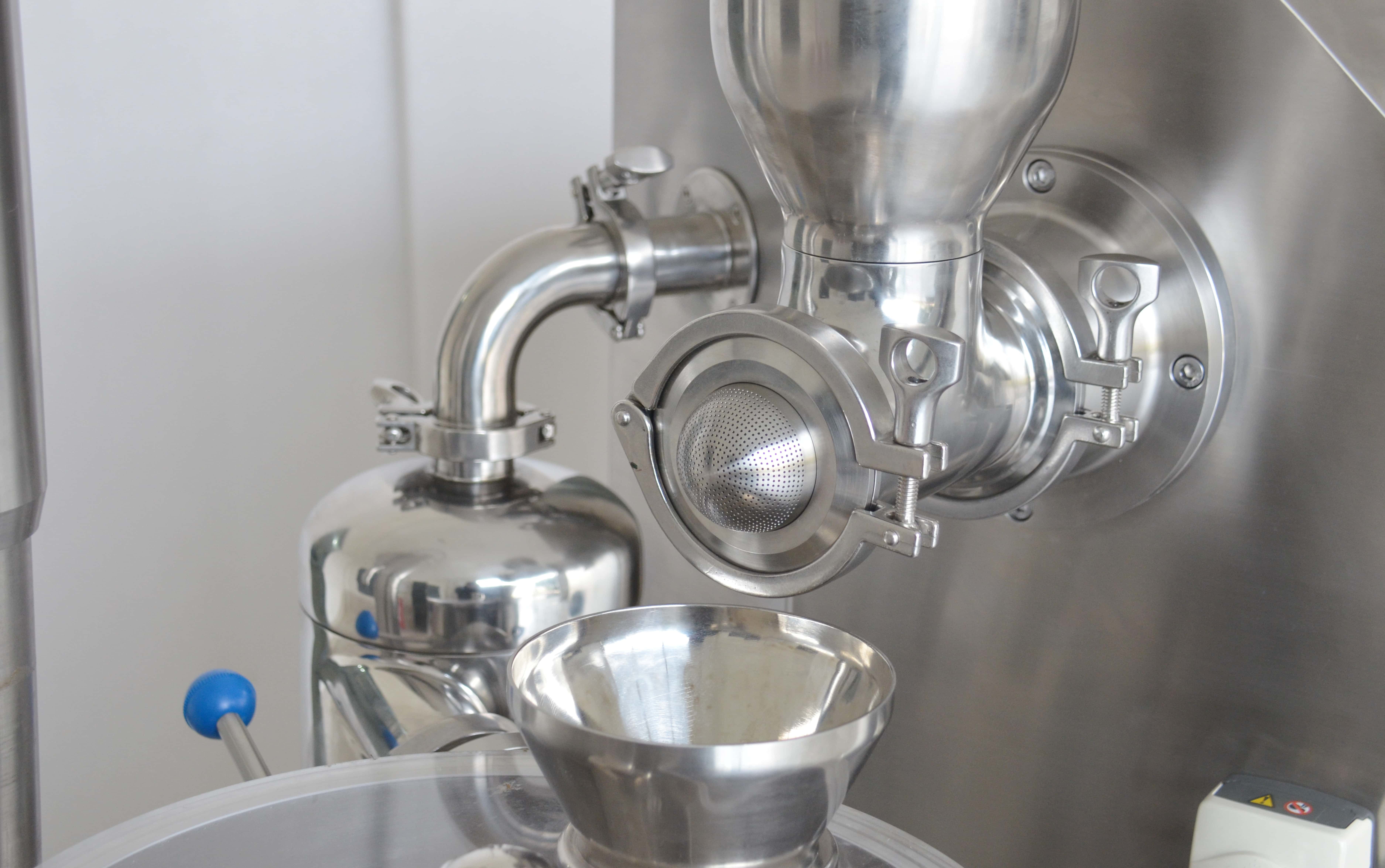

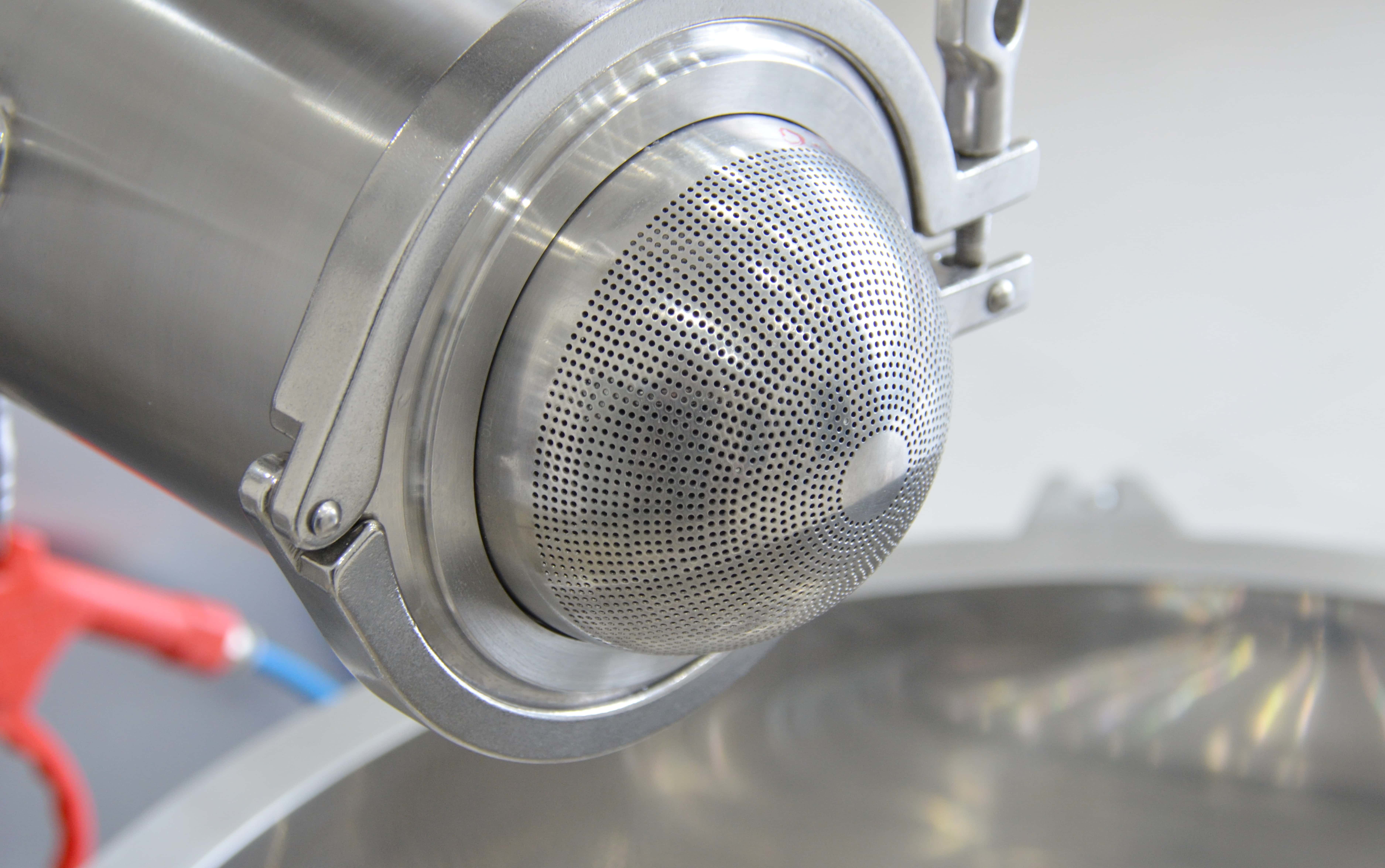

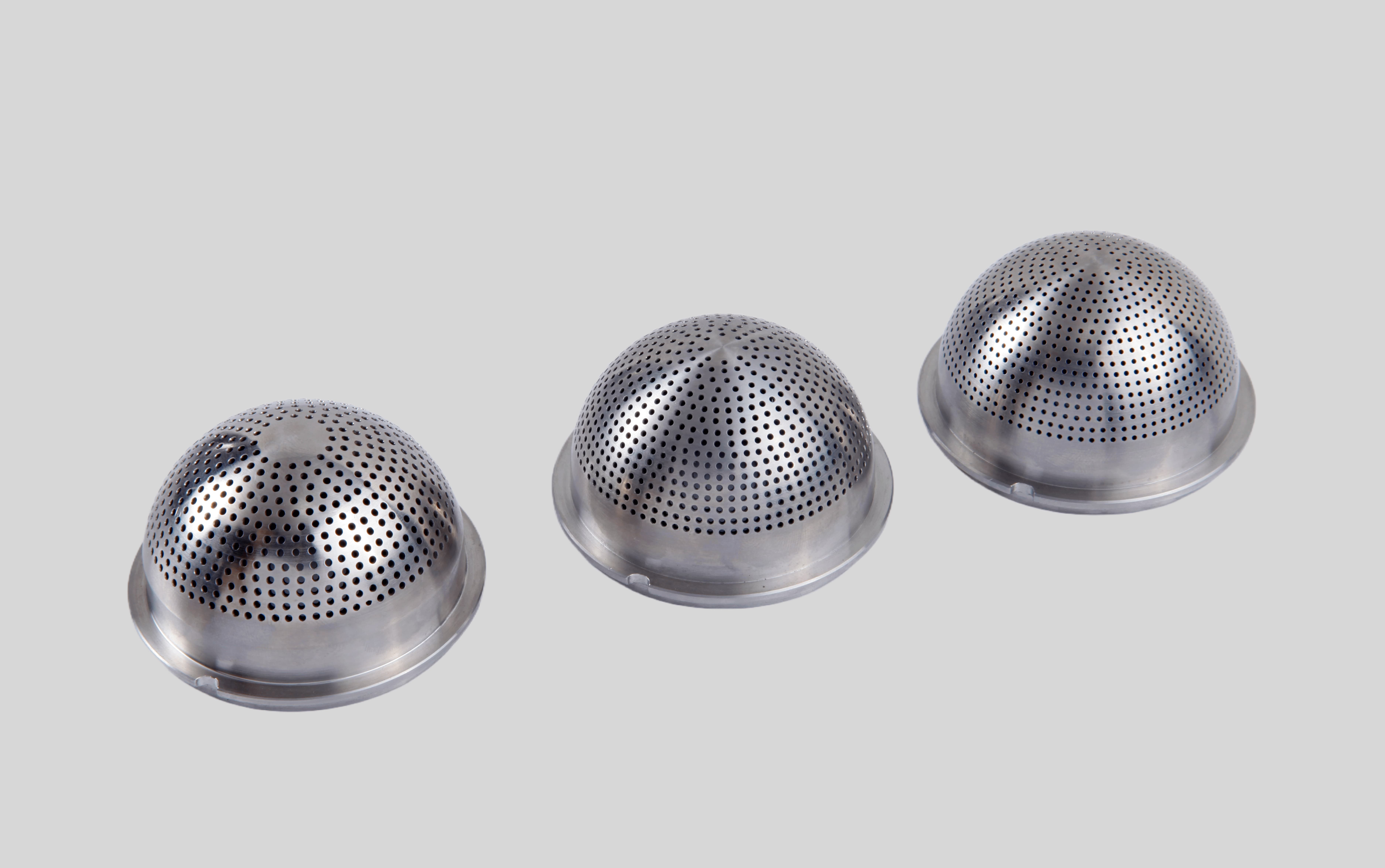

　　1. This machine innovatively has three micro-pellet preparation functions: centrifugal pelletizing, cutting spray pelletizing, and extrusion rolling pelletizing, and at the same time has centrifugal and side spray coating functions; different pelletizing modules meet the exploration of pelletizing processes for materials with different physical properties.

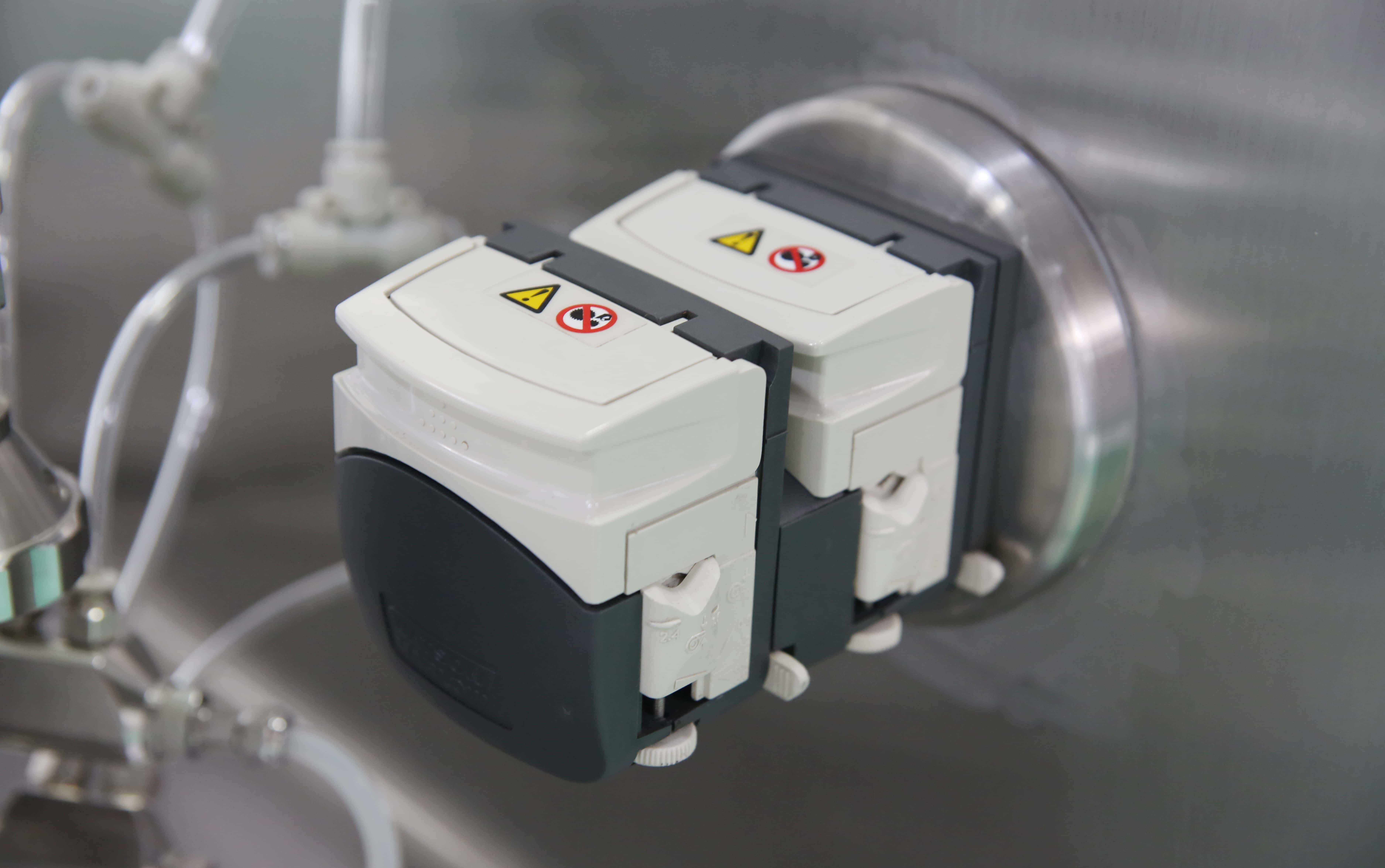

　　2. It innovatively adopts a brushless DC motor to drive rolling and extrusion, and a servo motor to drive the peristaltic pump head for liquid and powder feeding, increasing equipment reliability and service life.

　　3. The unique atomizer adjustment mechanism and diversion baffle can arbitrarily adjust the material movement trajectory at any position and angle, and the new atomizer makes the combination of material and binder atomized particles reach the optimal state, improving the pass rate.

　　4. The screw-type powder feeder has a bridge-breaking stirring device, and the powder feeding is continuous and stable; its lifting device can realize buried feeding, avoiding powder spillage.

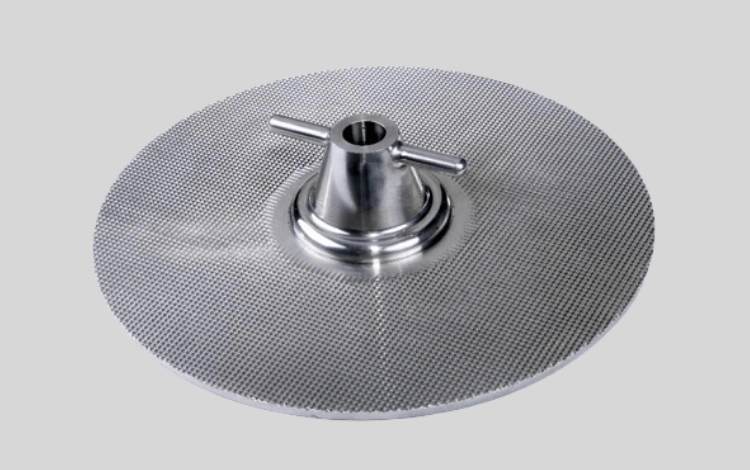

　　5. The cutting tooth disc tooth shape is optimized, processed by a four-axis machining center, and dynamically balanced.

　　6. A cyclone separator system and a cylindrical filter system for gas-solid separation are configured to separate, recover, and filter the exhaust gas.

　　7.  Configured with multiple process modules, using a touch screen + PLC control system, which can steplessly adjust the speed.

　　8. The structure is unique and novel, and the unique exterior arc design makes the appearance smooth and beautiful.
