Fluidized bed top spray gun
Classification:
Email:
export@cqlypz.com
Fluidized bed top spray gun

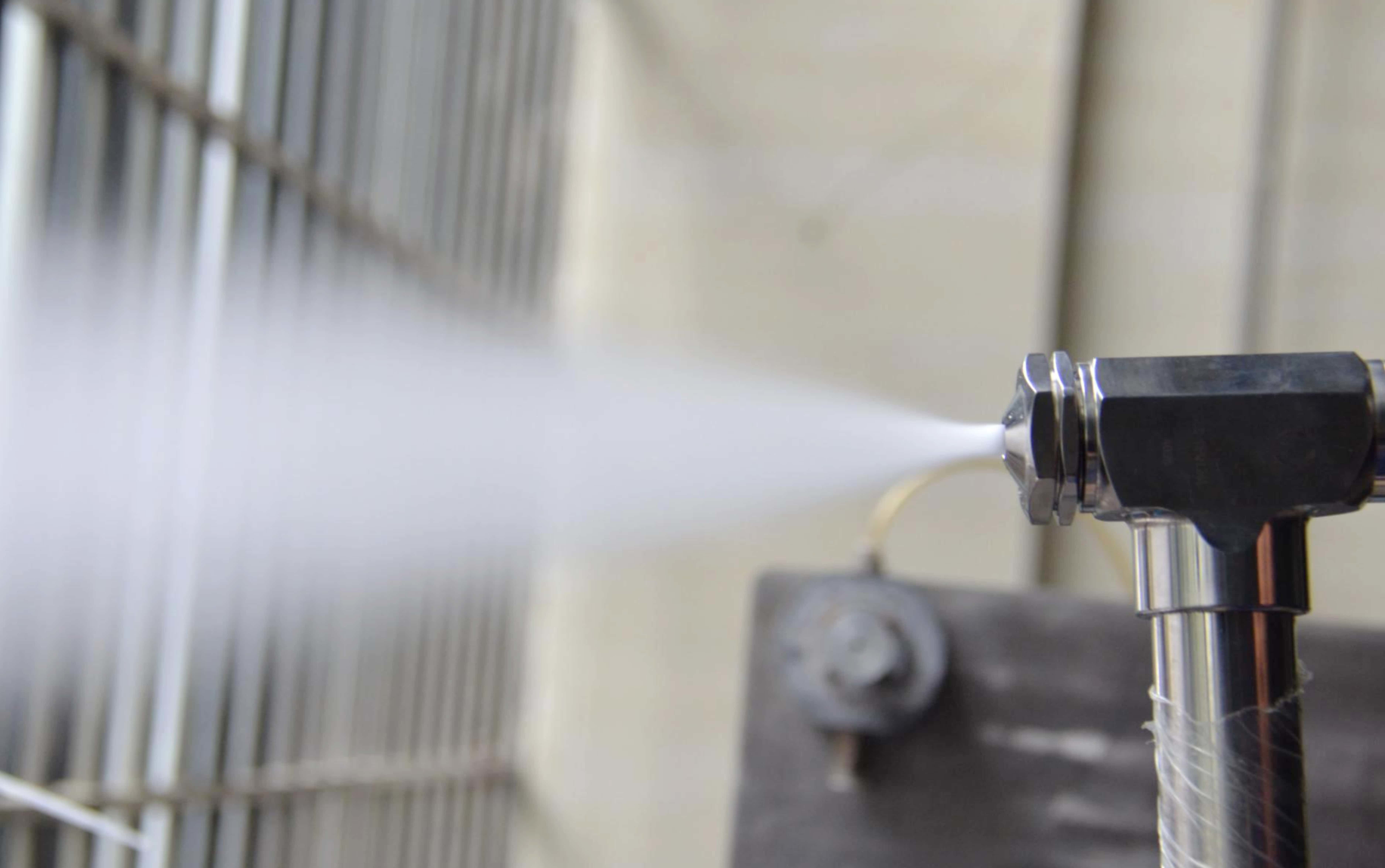

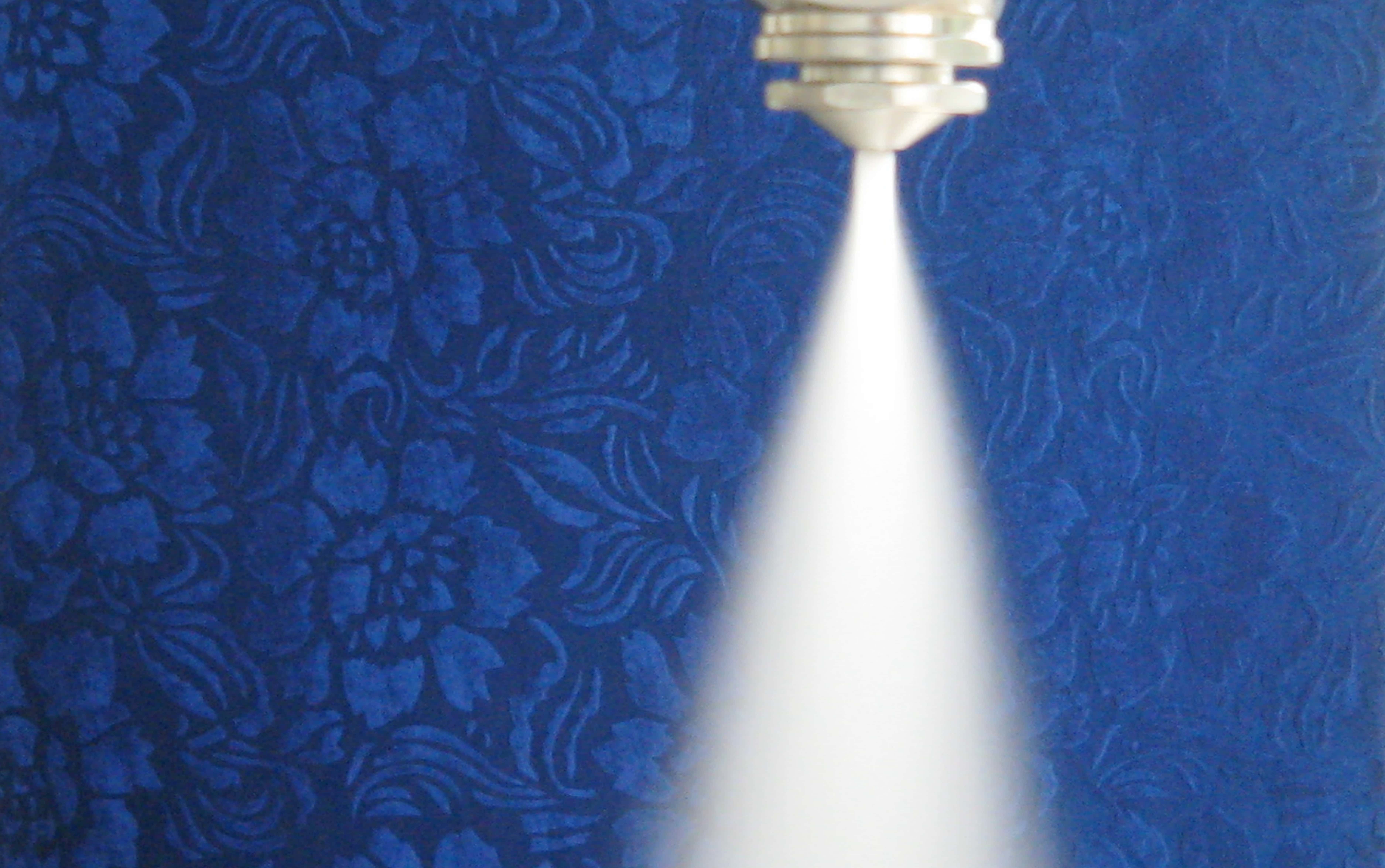

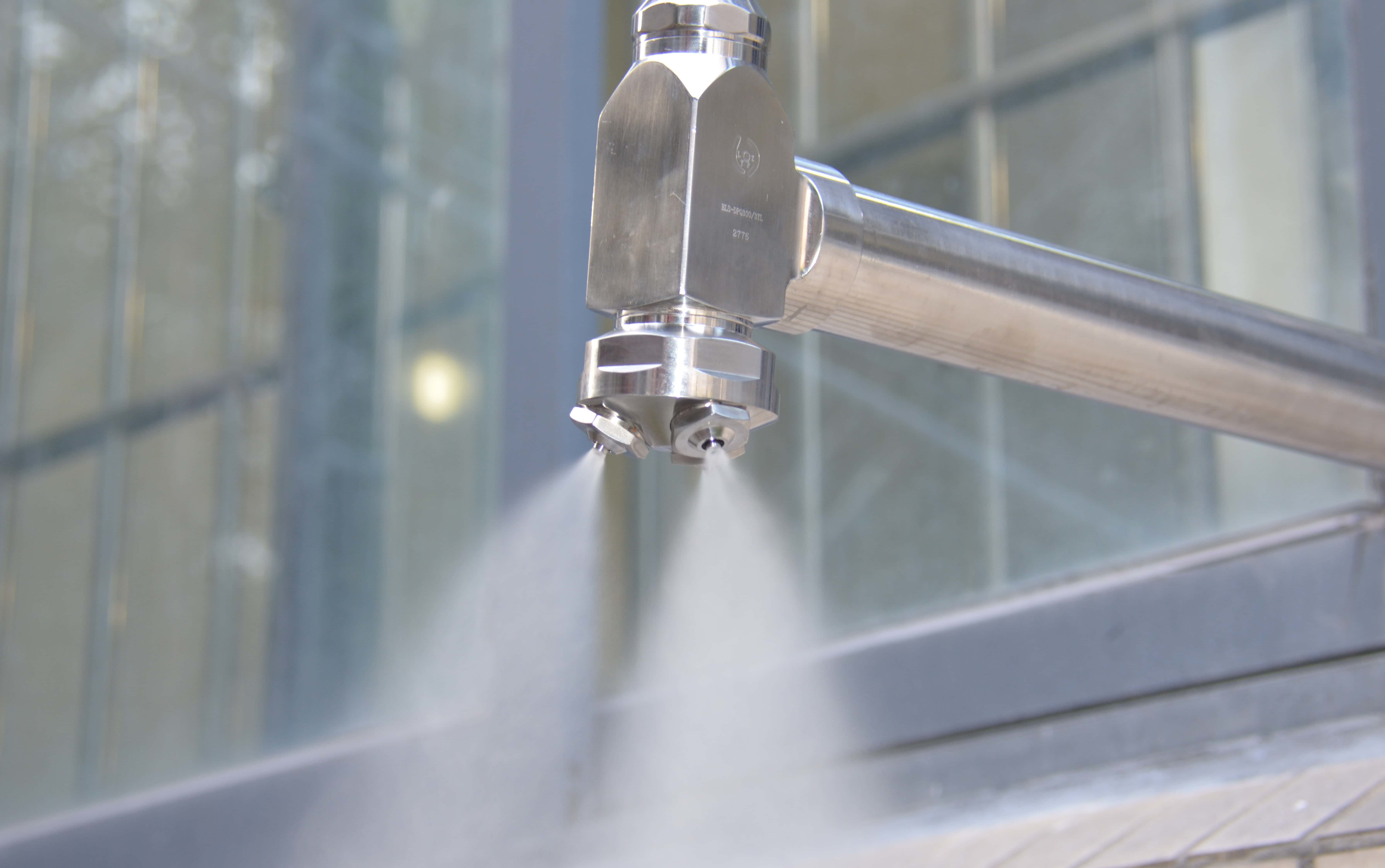

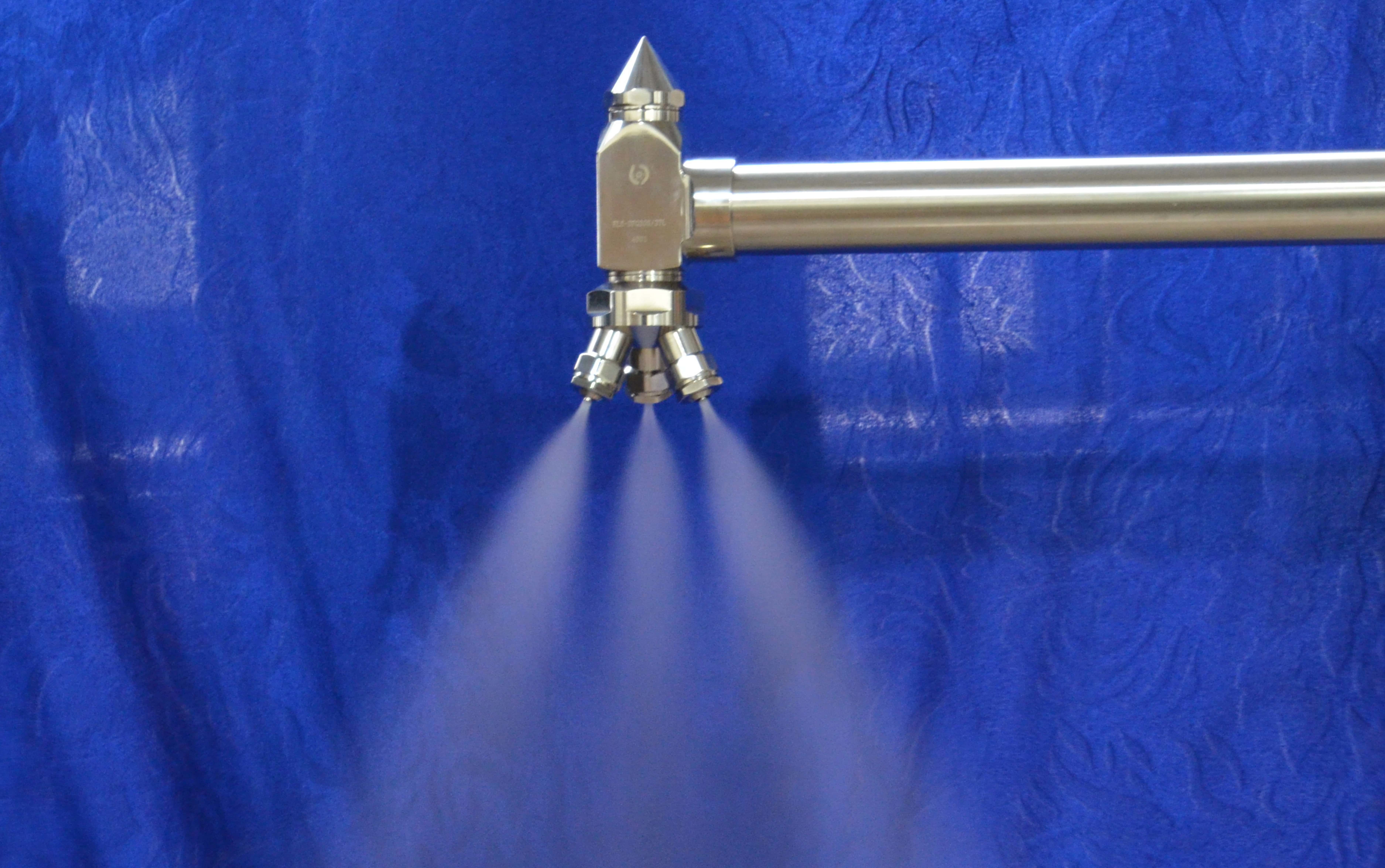

Spray effect
Model
| Description | Model | Nozzle parameters（mm） | Spray volume (ml/min) | Spray angle | Scope of application | note |
| Two-substance top spray gun | ELS-DPQ1 | φ0.6-1.0 | 1-30 | 10-20° | 0.2-1kg fluid bed | |
| Two-substance top spray gun | ELS-DPQ5L | φ0.6-1.2 | 5-50 | 20-30° | 1-3kg fluid bed | Pull rod connection, no weld seam |
| Two-substance top spray gun | ELS-DPQ15L | φ0.6-1.8 | 30-200 | 20-30° | 3-15kg fluid bed | Pull rod connection, no weld seam |
| Two-substance top spray gun | ELS-DPQ30L | φ1.0-2.5 | 100-350 | 20-30° | 10-30kg fluid bed | Pull rod connection, no weld seam |
| Two-substance top spray gun with three nozzles | ELS-DPQ300/3T | φ1.0-3.0 | 1000-2000 | 60-75° | 200-300kg fluid bed | |
| Two-substance top spray gun with three nozzles | ELS-DPQ300/3TL | φ1.0-3.0 | 1000-2000 | 60-75° | 200-300kg fluid bed | Pull rod connection, no weld seam |
| Two-substance top spray gun with several nozzles | ELS-DPQ300/（5T/7T/8T） | φ1.0-3.0 | 1000-2500 | 70-90° | 200-300kg fluid bed | |
| Three-substance top spray gun | SLS-DPQ20-60 | φ4.0/4.5 | 300-600 | 25-40° | 20-60kg fluid bed | |
| Three-substance top spray gun | SLS-DPQ60-300 | φ4.5/5.0/5.3 | 500-1300 | 30-45° | 60-300kg fluid bed | |
| Three-substance top spray gun | SLS-DPQ30-300L | φ4.5/5.0/5.3 | 500-1300 | 30-45° | 60-300kg fluid bed | Pull rod connection, no weld seam |
| Three-substance top spray gun with three nozzles | SLS-DPQ300/3TL | φ3.5/4.0 | 1000-2500 | 70-80° | 200-300kg fluid bed | Pull rod connection, no weld seam |
Due to equipment updates or upgrades, all the above data shall be subject to the final signed contract.
